Brand | Gigabyte |

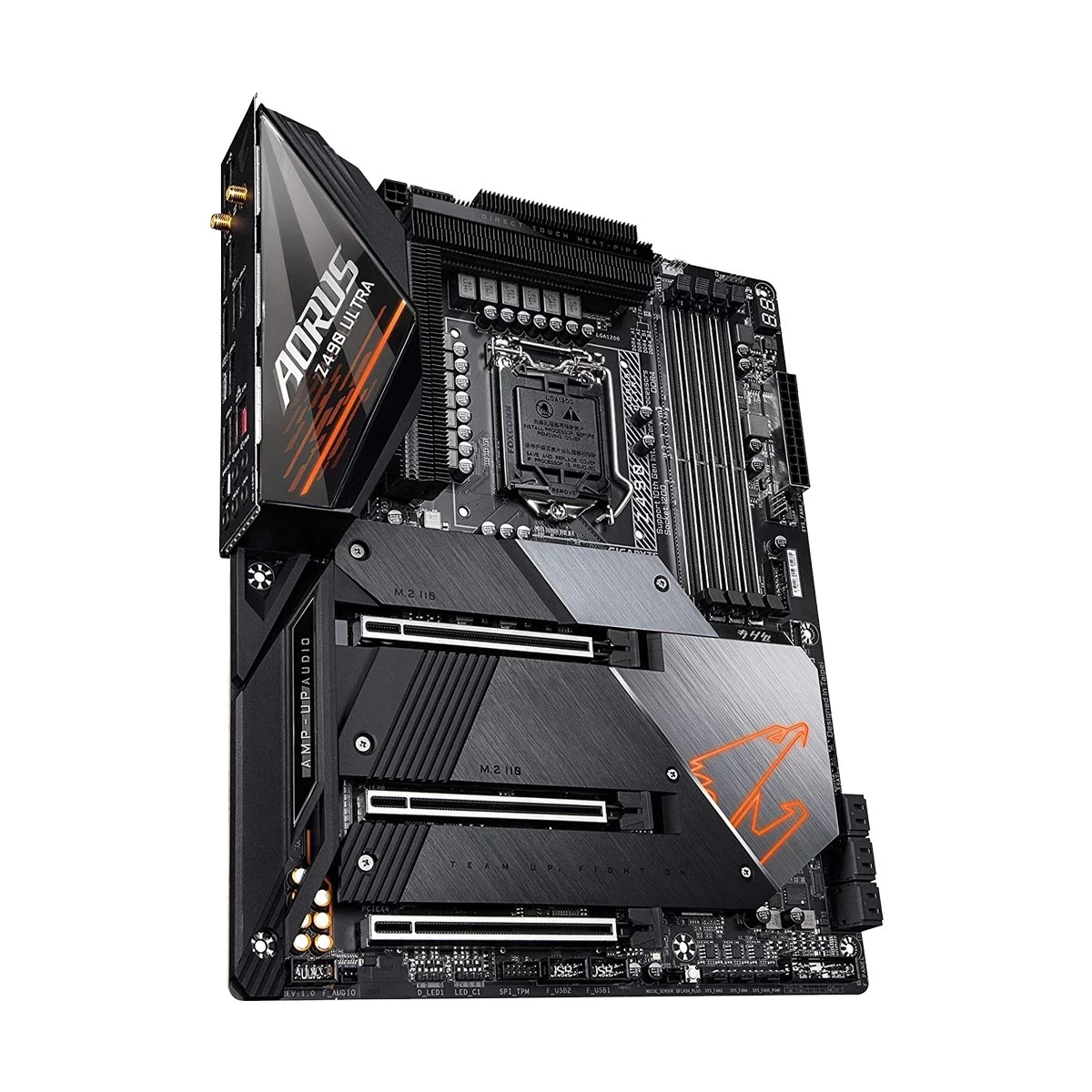

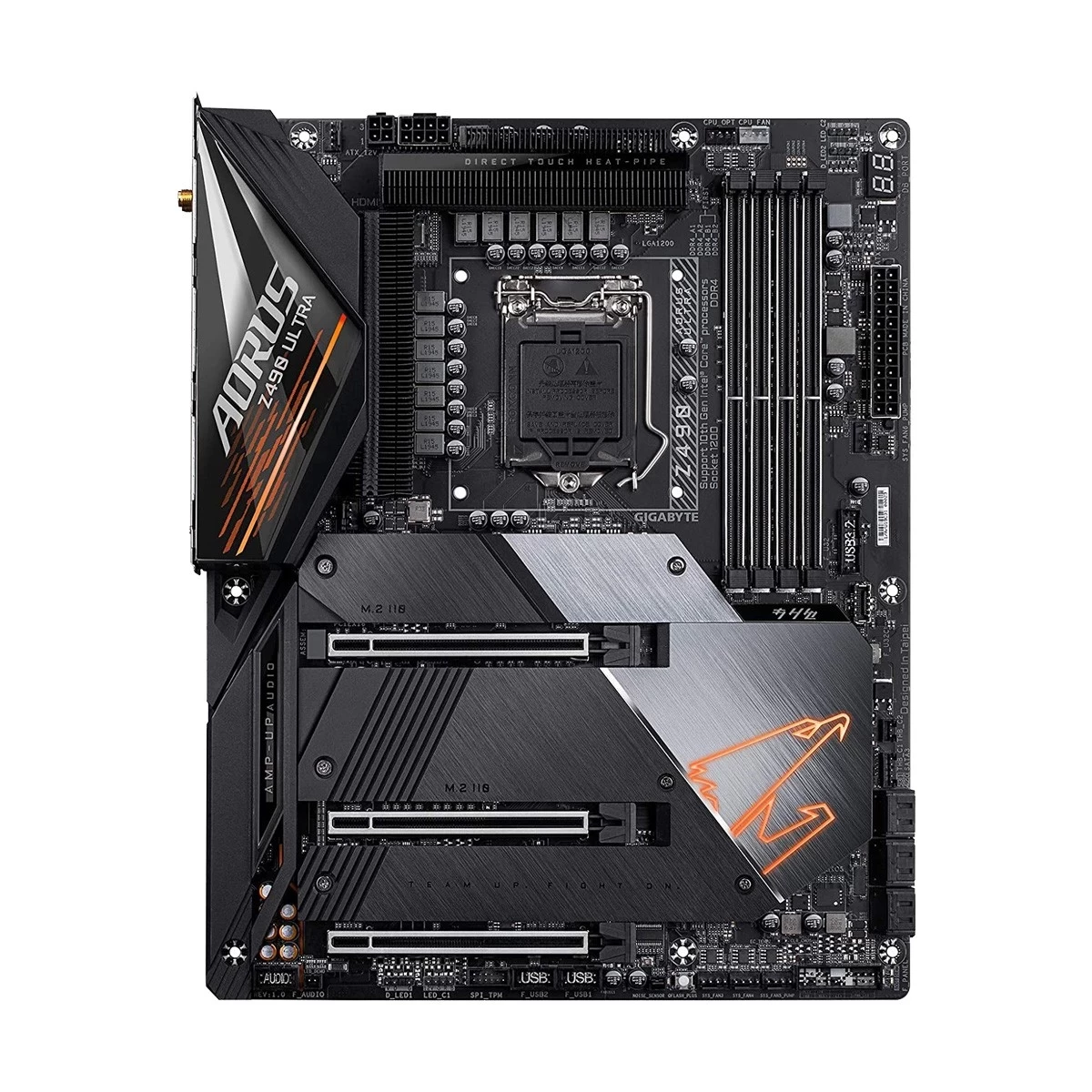

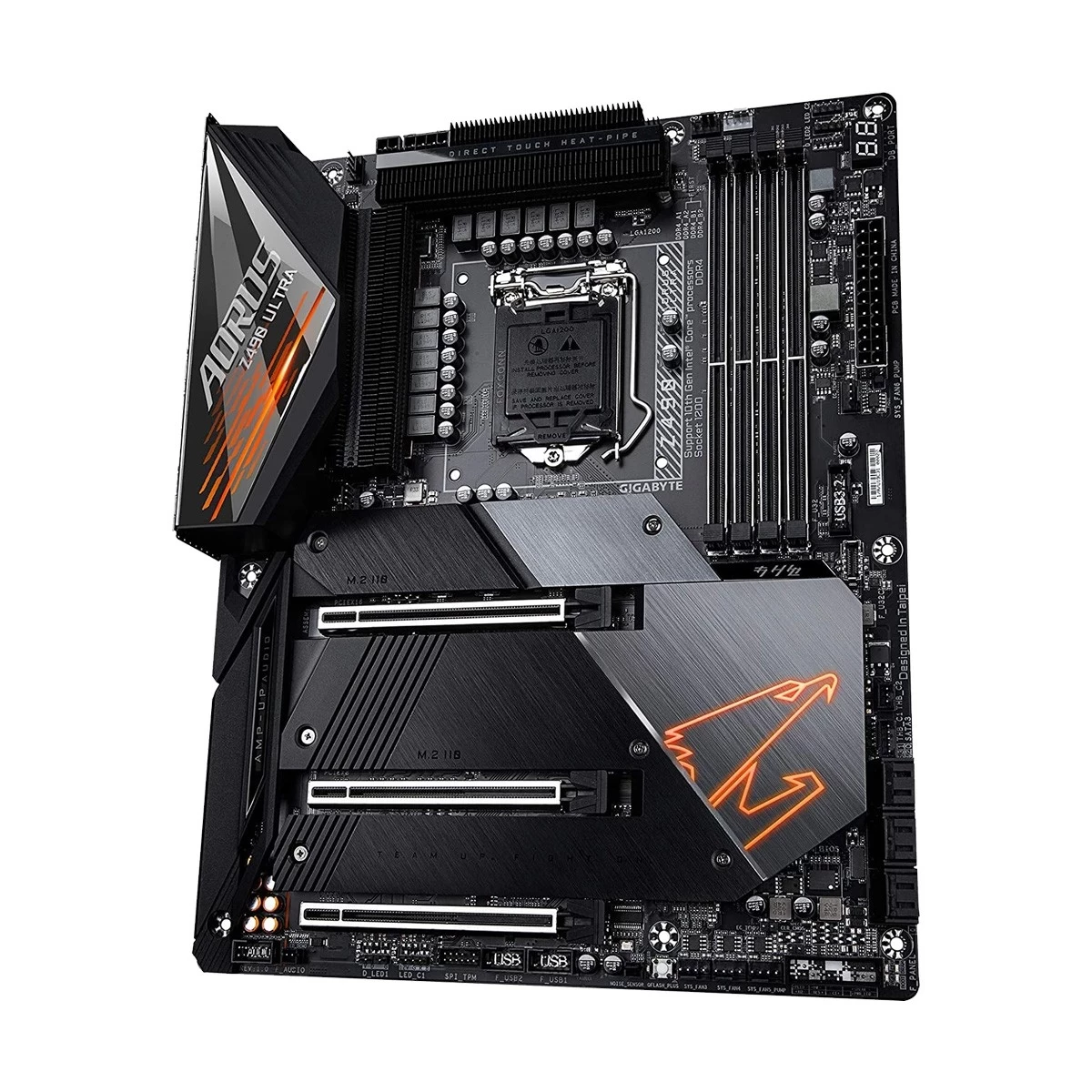

Model | Gigabyte Z490 AORUS ULTRA |
CPU | |
Chipset Brand | Intel |
Chipset | Intel Z490 |
Sockets Supported | LGA1200 |
Supported CPU | 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors |
Generation | 10th |
Memory Support | |
Memory Type | DDR4 |
Memory MHz | Intel Core i9/i7 (5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.) / 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz) |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Optane Memory Support | Yes |
Storage | |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 3 |
Graphics | |
Graphics | Integrated Graphics |
Multi-GPU Support | NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI & AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
Audio & Video | |
Audio Chipset. | Realtek ALC1220-VB |
Audio Channel | 2/4/5.1/7.1 |
Network & Connectivity | |
LAN Chipset | Intel 2.5GbE LAN |
LAN Speed (Mbps) | 2.5 Gbit/1 Gbit/100 Mbit |
WiFi | Yes |
WiFi Technology | Intel Wi-Fi 6 AX201, WIFI a/b/g/n/ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Bluetooth | Bluetooth 5 |
Ports | |

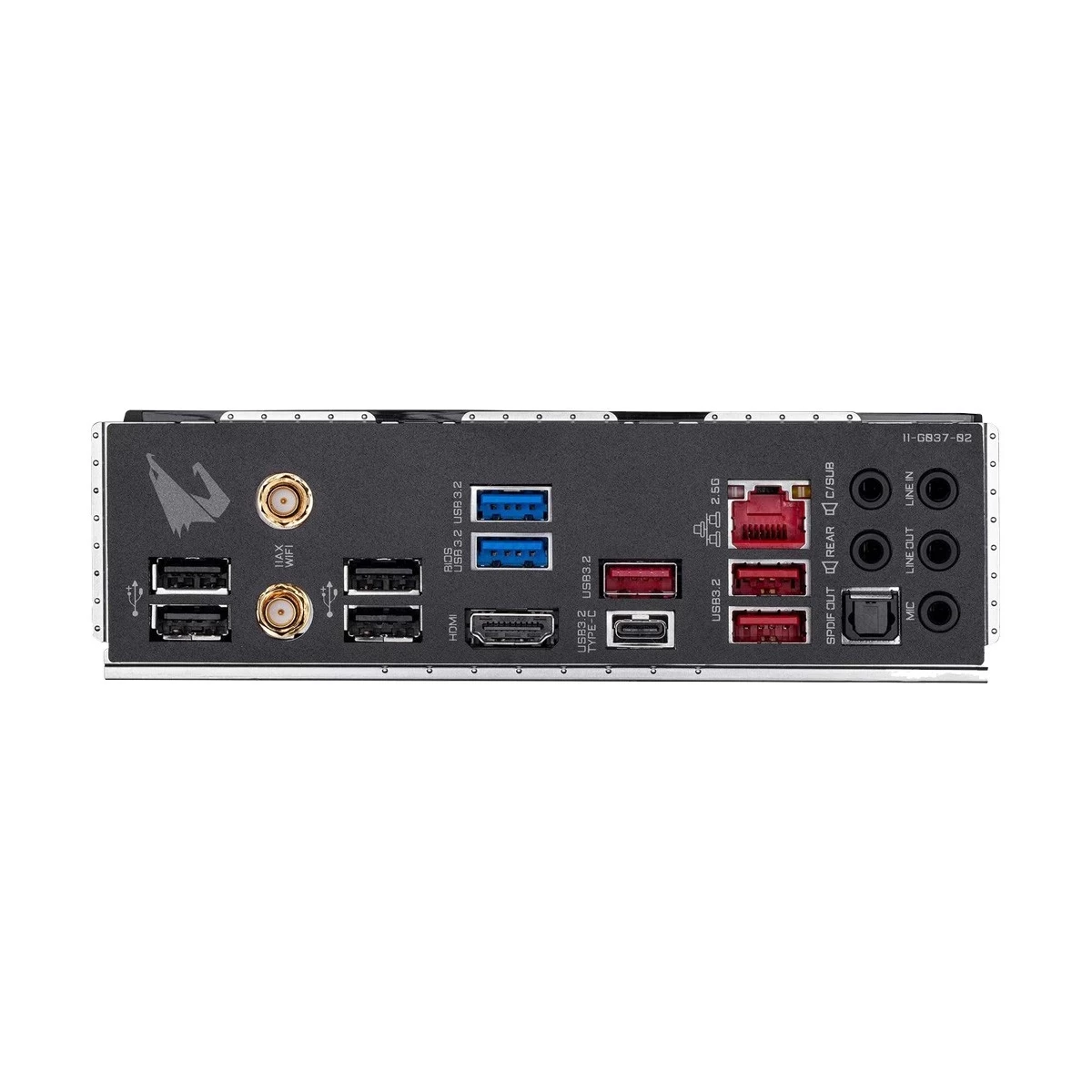

USB Port | 2 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 6 x USB 2.0 |
DisplayPort (DP) | No |
SATA Port | 6 x SATA |
Thunderbolt | 2 |
TPM Port | Yes |
COM Port | No |
Technical Information | |
FireWire | No |
CrossFire Support | Yes |
Sli Support | Yes |
Raid Support | 0, 1, 5, 10 |
RGB Support | Yes |
RGB Sync | RGB FUSION 2.0 |
RGB Connector | 2 x RGB LED strip headers |
Form Factor | ATX |
Bios Information | |
BIOS Type | 1 x 256 Mbit flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Compatibility | |
Supported Operating System | Windows 10 |
Warranty | |
Warranty | 3 Year |
Additional Info | |
Feature | Intel Z490 AORUS Motherboard with Direct 12+1 Phases Digital VRM Design, Comprehensive Thermal Solution with NanoCarbon Fins-Array II, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Intel Optane Memory Ready,Direct 12+1 Phases Digital VRM Solution with 55A DrMOS,Shielded Memory Routing for Better Memory Overclocking,NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna,AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR Blazing Fast Intel 2.5GbE LAN with cFosSpeed,Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card |
Others | 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 1 x Clear CMOS jumper, 2 x temperature sensor headers, 1 x Q-Flash Plus button |
It supports DDR4 Intel Core i9/i7 (5000(O.C.), 4933(O.C.), 4800(O.C.), 4700(O.C.), 4600(O.C.), 4500(O.C.), 4400(O.C.), 4300(O.C.),4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.), 3666(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2933, 2800, 2666, 2400, 2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz) ram. Maximum ram supports 128GB. Also, you can use 3 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Gigabyte Z490 AORUS ULTRA 10th Gen Wi-Fi 6 Gaming Intel Motherboardcomes with Graphics. PCI Express Slot are 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4).
The here audio chipset used Realtek ALC1220-VB. Audio Channel available are 2/4/5.1/7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Gigabyte motherboard offers Intel 2.5GbE LAN lan chipset and it’s speeds 2.5 Gbit/1 Gbit/100 Mbit. USB port available Two USB 3.2 Gen 2 Type-C, Three USB 3.2 Gen 2 Type-A, Three USB 3.2 Gen 1, Six USB 2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX Form motherboard. Yes it’s a RGB support motherboard, also you can 2 x RGB LED strip headers RGB connector. The Gigabyte Z490 AORUS ULTRA 10th Gen Wi-Fi 6 Gaming Intel Motherboardsupported operating system is Windows 10. You will get a 3 year brand warranty.
