Brand | Gigabyte |

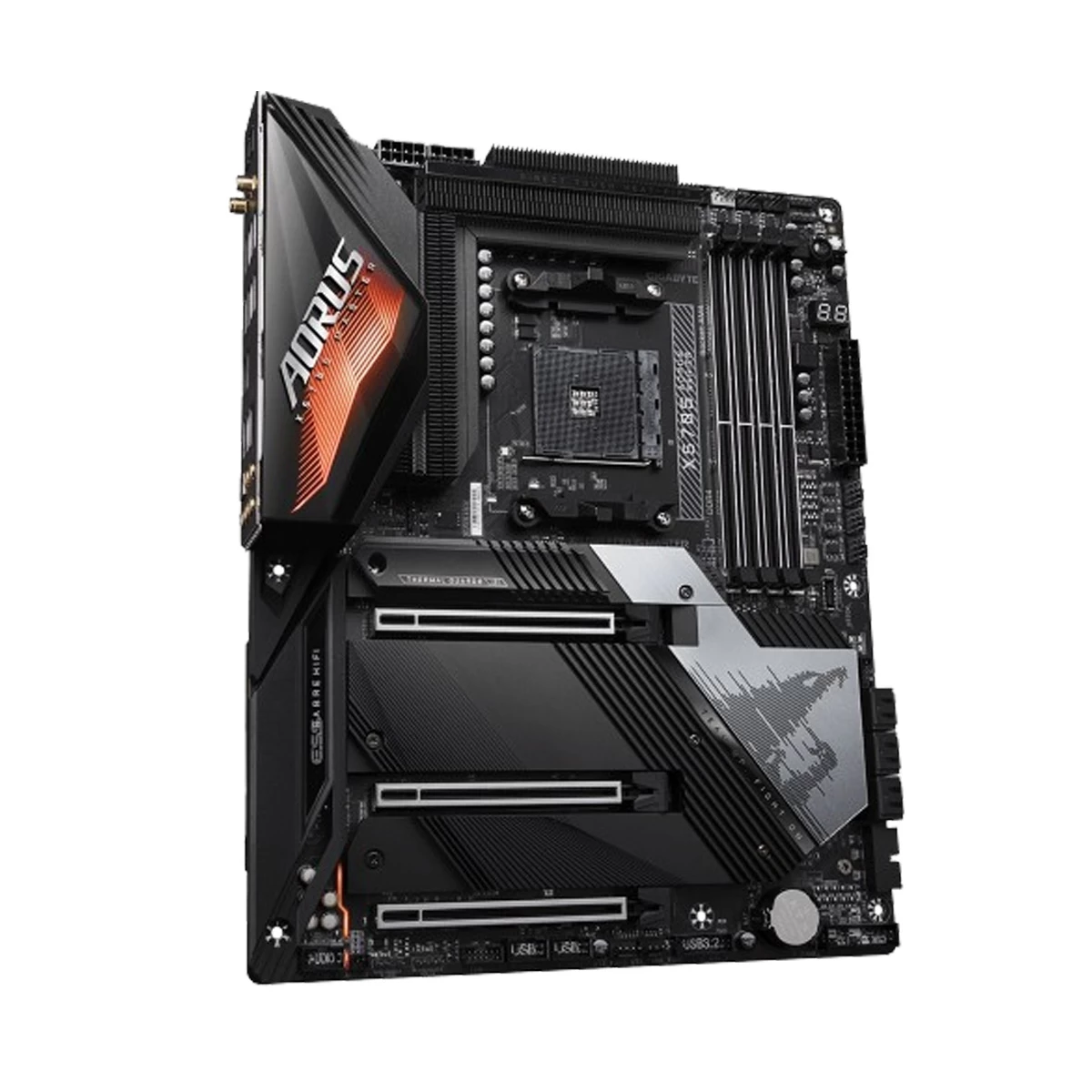

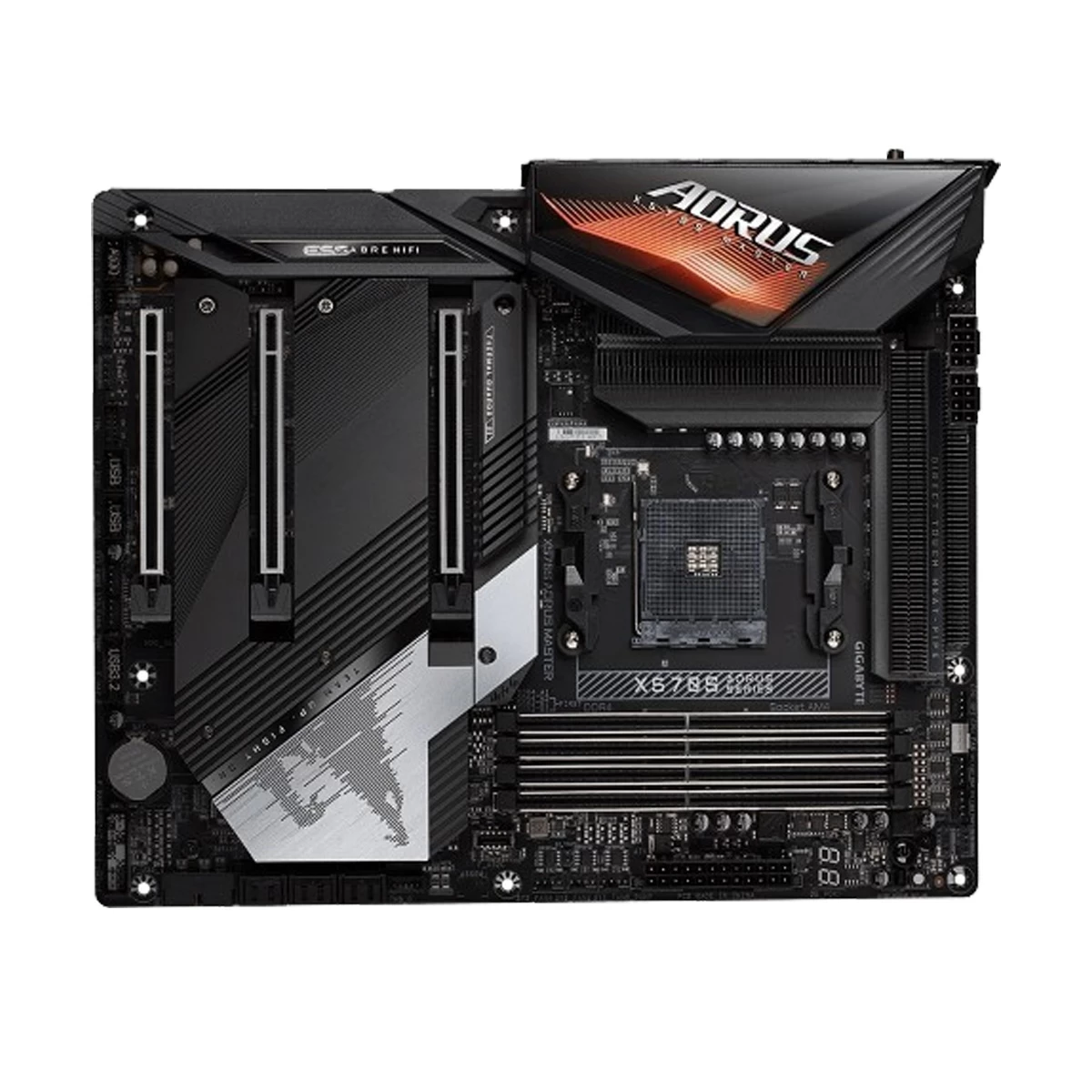

Model | Gigabyte X570S Aorus Master |
CPU | |
Chipset Brand | AMD |
Chipset | AMD X570 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors |
Memory Support | |
Memory Type | DDR4 |
Memory MHz | DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Slot (Additional Info) | 4 x DDR4 DIMM |
Memory Max. | 128GB |
Memory Max. (Additional Info) | 32 GB single DIMM capacity of system memory |
Optane Memory Support | No |
Storage | |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 4 |
Graphics | |
Multi-GPU Support | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
PCI Express Slot | 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX8), 1 x PCI Express x16 slot (PCIEX4) |
Audio & Video | |
Audio Chipset. | Realtek ALC1220-VB |
Audio Channel | 2/4/5.1/7.1 |
Network & Connectivity | |
LAN Chipset | Intel 2.5GbE LAN chip |
LAN Speed (Mbps) | 100 Mbps |
WiFi | Yes |
WiFi Technology | Wi-Fi 6E AX210, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
Bluetooth | Bluetooth 5.2 |
Ports | |

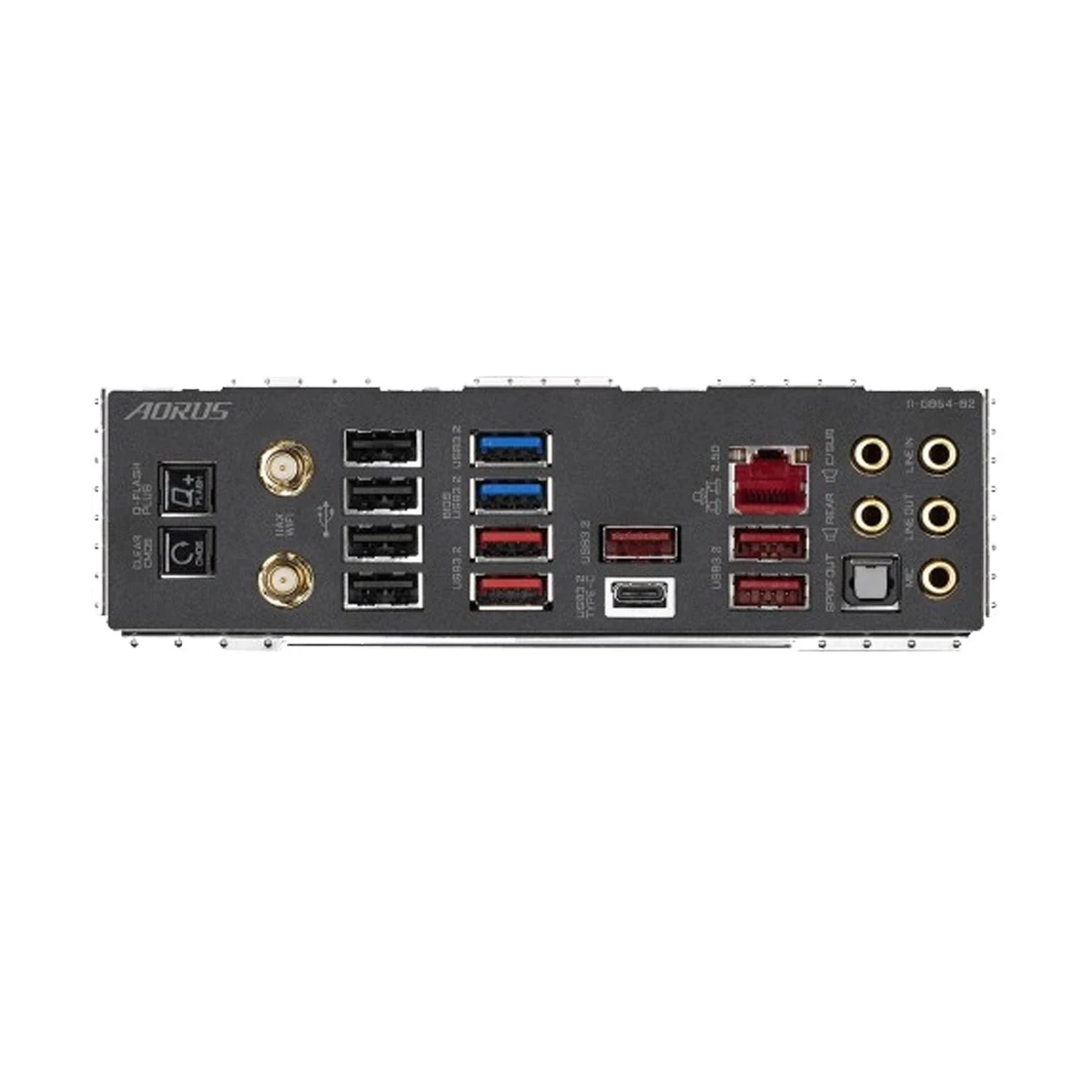

USB Port | 1 x USB Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0 (Internal), 1 x USB Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (Back Panel) |
DisplayPort (DP) | No |
SATA Port | 6 x SATA |
Thunderbolt | 1 |
TPM Port | Yes |
COM Port | No |
Technical Information | |
DirectX Support | No |
FireWire | No |
CrossFire Support | Yes |
Sli Support | No |
Raid Support | 0,1,10 |
RGB Support | Yes |
RGB Sync | RGB Fusion 2.0 |
RGB Connector | 2 x RGB LED strip headers |
Form Factor | ATX |
Bios Information | |
BIOS Type | 1 x 256 Mbit flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Compatibility | |
Supported Operating System | Windows 10 Home |
Warranty | |
Warranty | 3 Year |
Additional Info | |
Feature | Q-Flash Plus Button, Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna, Rear USB 3.2 Gen 2x2 Type-C, Intel 2.5GbE LAN, Advanced Thermal Design, Direct 14+2 Phases Digital Power Design, Noise Detection, Solid Pin Power Connectors, Supports AMD Ryzen Series Processors, Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor, Front USB 3.2 Gen 2 Type-C, Ultra Durable PCIe Armor |
Memory Max. - 128GB, Memory Max. (Additional Info) - 32 GB single DIMM capacity of system memory, Optane Memory Support - No, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX8), 1 x PCI Express x16 slot (PCIEX4), Storage Interface - 6Gb/s, M.2 Slot - 4 x M.2 Socket 3 (1 x M.2, AMD Ryzen 5000/3000 Series SATA and PCIe 4.0 x4/x2 SSDs, AMD Ryzen 4000/3000/2000 G-Series SATA and PCIe 3.0 x4/x2 SSDs), (1 x M.2, AMD Ryzen 5000/3000 Series PCIe 4.0/3.0 x4/x2 SSDs), (2 x M.2, Ryzen 5000/3000 Series SATA and PCIe 4.0/3.0 x4/x2 SSDs), LAN Chipset - Intel 2.5GbE LAN chip, LAN Speed (Mbps) - 2.5 Gbps/1 Gbps/100 Mbps, Audio Chipset - Realtek ALC1220-VB, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - Yes, Wi-Fi Technology - Wi-Fi 6E AX210, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands,
Bluetooth - Bluetooth 5.2, USB Port - 1 x USB Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0 (Internal), 1 x USB Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (Back Panel), VGA Port - No, DVI Port - No, HDMI Port - No, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, DirectX Support - No, BIOS Type - 1 x 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,10, Thunderbolt - 1, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB Fusion 2.0, RGB Connector - 2 x RGB LED strip headers, Form Factor - ATX, Supported Operating System - Windows 10 Home, Special Features - Q-Flash Plus Button, Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna, Rear USB 3.2 Gen 2x2 Type-C, Intel 2.5GbE LAN, Advanced Thermal Design, Direct 14+2 Phases Digital Power Design, Noise Detection, Solid Pin Power Connectors, Supports AMD Ryzen Series Processors, Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor, Front USB 3.2 Gen 2 Type-C, Ultra Durable PCIe Armor, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China.
