Brand | Asus |

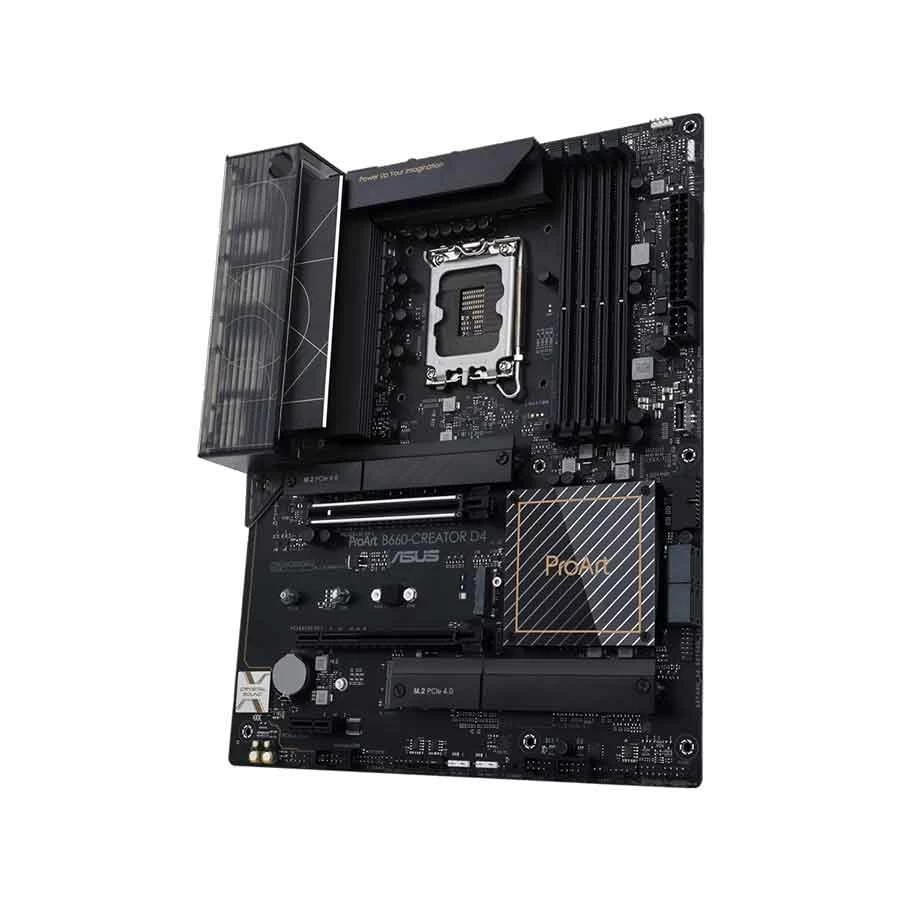

Model | Asus ProArt B660-CREATOR D4 |
CPU | |
Chipset Brand | Intel |
Chipset | Intel B660 |
Sockets Supported | LGA1700 |
Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
Generation | 12th |
Memory Support | |
Memory Type | DDR5 |
Memory MHz | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Optane Memory Support | Yes |
Storage | |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 3 |
Graphics | |
PCI Express Slot | 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot |
Audio & Video | |
Audio Chipset. | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Network & Connectivity | |
LAN Chipset | Realtek 2.5Gb Ethernet, Intel 1Gb Ethernet |
Ports | |
USB Port | 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 x SATA |
TPM Port | 1 |
COM Port | 1 |
Technical Information | |
CrossFire Support | No |
Sli Support | No |
Raid Support | 0, 1, 5, 10 |
RGB Support | Yes |
RGB Connector | 1 x AURA RGB header |
Form Factor | ATX |
Bios Information | |
BIOS Type | 128MB |
Compatibility | |
Supported Operating System | Windows 10/ 11 |
Warranty | |
Warranty | 3 Years Replacement Warranty |
Additional Info | |

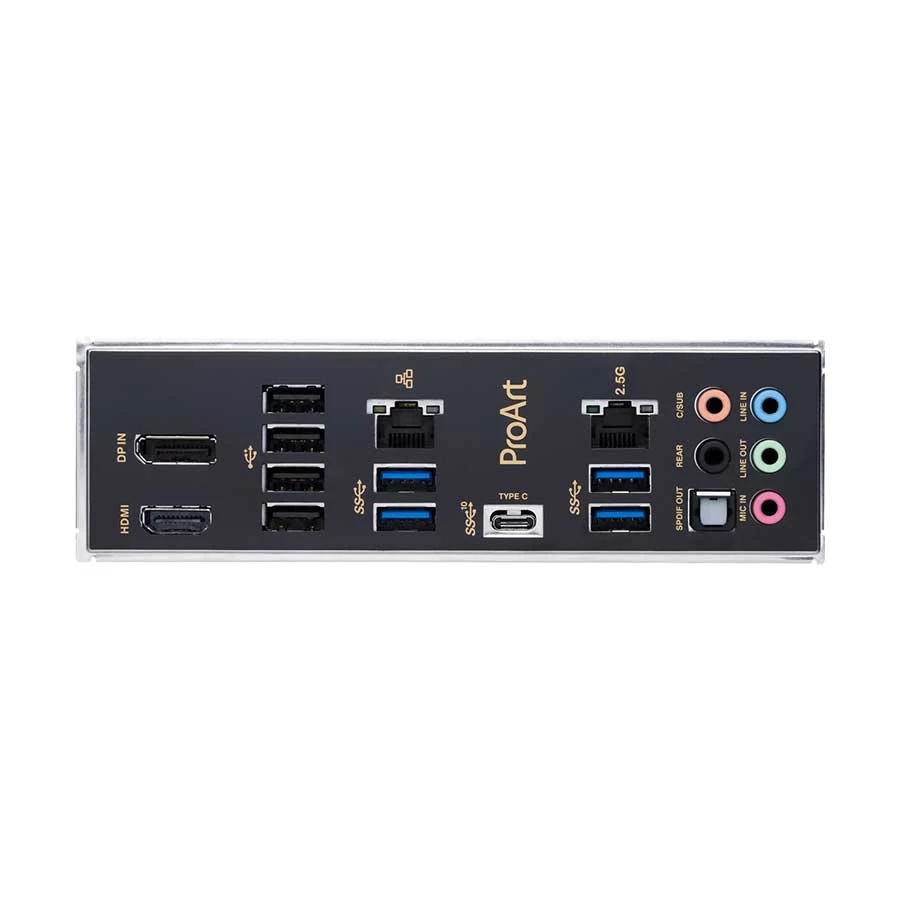

Others | Back Panel I/O Ports: 1 x Realtek 2.5Gb Ethernet port, 1 x Intel 1Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header. Manageability: WOL by PME, PXE |
Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, PCI Express Slot - 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 3 x M.2 (1 x M.2, 2242/ 2260/ 2280/ 22110), (1 x M.2, 2242/ 2260/ 2280, PCIe 3.0 x4), (1 x M.2, 2242/ 2260/ 2280/ 22110, PCIe 4.0 x4), LAN Chipset - Realtek 2.5Gb Ethernet, Intel 1Gb Ethernet, Audio Chipset - Realtek 7.1 Surround Sound High Definition Audio CODEC, USB Port - 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, HDMI Port - 1, DisplayPort (DP) - 1, SATA Port - 4 x SATA, BIOS Type - 128MB,
CrossFire Support - No, Sli Support - No, RaidSupport - 0,1,5,10, TPM Port - 1, COM Port - 1, RGB Support - Yes, RGB Connector - 1 x AURA RGB header, Form Factor - ATX, Supported Operating System - Windows 10/ 11, Others - Back Panel I/O Ports: 1 x Realtek 2.5Gb Ethernet port, 1 x Intel 1Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header. Manageability: WOL by PME, PXE, Warranty - 3 Year Replacement, Country of Origin - Taiwan, Made in/ Assemble - China.
