Brand | Asus |
Model | Asus TUF GAMING Z590-PLUS |
CPU | |
Chipset Brand | Intel |
Chipset | Intel Z590 |
Sockets Supported | LGA1200 |
Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
Generation | 10th/11th |
Memory Support | |
Memory Type | DDR4 |
Memory MHz | 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Optane Memory Support | No |
Storage | |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 3 |
Graphics | |
PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots |
Audio & Video | |
Audio Chipset. | Realtek ALC S1200A |
Audio Channel | 7.1 |
Network & Connectivity | |
LAN Chipset | Intel I225-V 2.5Gb Ethernet |
LAN Speed (Mbps) | 10/100 Mbps |
WiFi | Yes |
WiFi Technology | Wi-Fi 6 2x2 (802.11 a, b, g, n, ac, ax) |
Bluetooth | Bluetooth 5.0 |
Ports | |

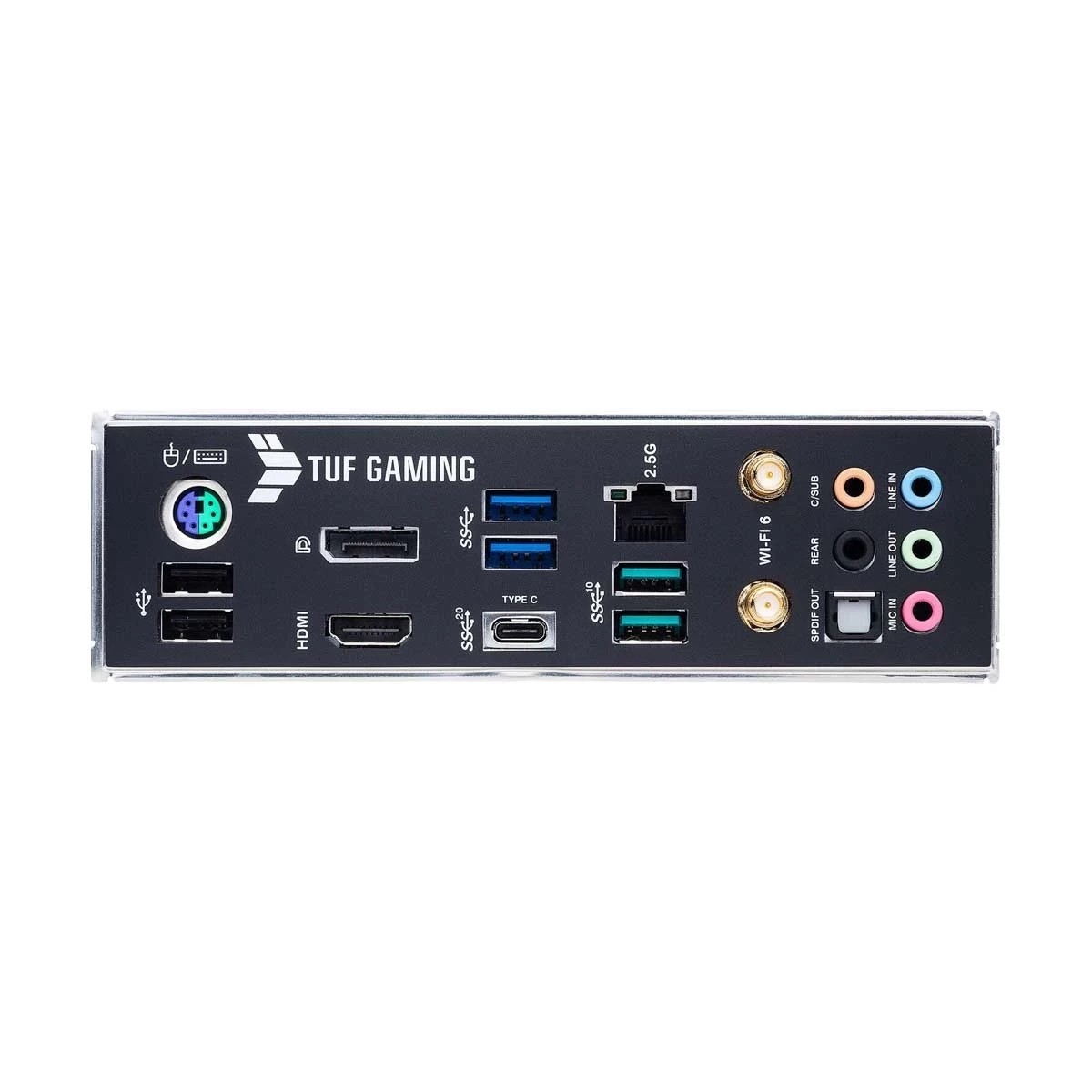

USB Port | 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 6 |
Thunderbolt | 1 |
COM Port | 1 |
Technical Information | |
CrossFire Support | No |
Sli Support | No |
RGB Support | Yes |
RGB Sync | Aura sync |
RGB Connector | 2 x AURA RGB headers |
Form Factor | ATX |
Bios Information | |
BIOS Type | 192 (128+64) Mb Flash |
BIOS Model | UEFI AMI BIOS |
Compatibility | |
Supported Operating System | Windows 10 |
Warranty | |
Warranty | 3 Years Replacement Warranty |
Additional Info | |
Feature | Intel Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages, PCIe 4.0, three M.2 slots, Intel WiFi 6 and 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, SATA 6 Gbps, front panel USB 3.2 Gen 1 Type C, Thunderbolt 4 support and Aura Sync RGB lighting, Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors, Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability, Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility, Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences, Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in |
Others | 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x PS/2 Keyboard/Mouse combo port, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x Clear CMOS header |
It supports DDR4 5133(OC), 5000(OC), 4800(OC), 4700(OC), 4600(OC), 4500(OC), 4400(OC), 4266(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200, 3000, 2933, 2800, 2666, 2400/ 2133 MHz ram. Maximum ram supports 128GB. Also, you can use 3 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus TUF GAMING Z590-PLUS Wi-Fi 6 Intel Mainboardcomes with Graphics. PCI Express Slot are 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots. The here audio chipset used Realtek ALC S1200A. Audio Channel available are 7.1, so you can enjoy crystal clear sound.
For Network and Connectivity purposes the Asus motherboard offers Intel I225-V 2.5Gb Ethernet lan chipset and it’s speeds 10/100 Mbps. USB port available One USB 3.2 Gen 2x2 Type-C, One USB 3.2 Gen 1 Type-C, Two USB 3.2 Gen 2 Type-A, Three USB 3.2 Gen 1 Type-A, Four USB 2.0 Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x AURA RGB headers RGB connector. The Asus TUF GAMING Z590-PLUS Wi-Fi 6 Intel Mainboardsupported operating system is Windows 10. You will get a 3 Years Replacement Warranty brand warranty.
