Brand | Asus |
Model | Asus TUF GAMING B550M-E |
CPU | |
Chipset Brand | AMD |
Chipset | AMD B550 |
Sockets Supported | AM4 |
Supported CPU | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series |
Memory Support | |
Memory Type | DDR4 |
Memory MHz | 4866(OC)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz |
Memory Channel | Dual |
Memory Slot | 4 |
Memory Max. | 128GB |
Storage | |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 2 |
Graphics | |
PCI Express Slot | 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1 |
Audio & Video | |
Audio Chipset. | Realtek ALC887/897 |
Audio Channel | 7.1 |
Network & Connectivity | |
LAN Speed (Mbps) | 10/100/1000Mbps |
WiFi | No |
Bluetooth | No |
Ports | |

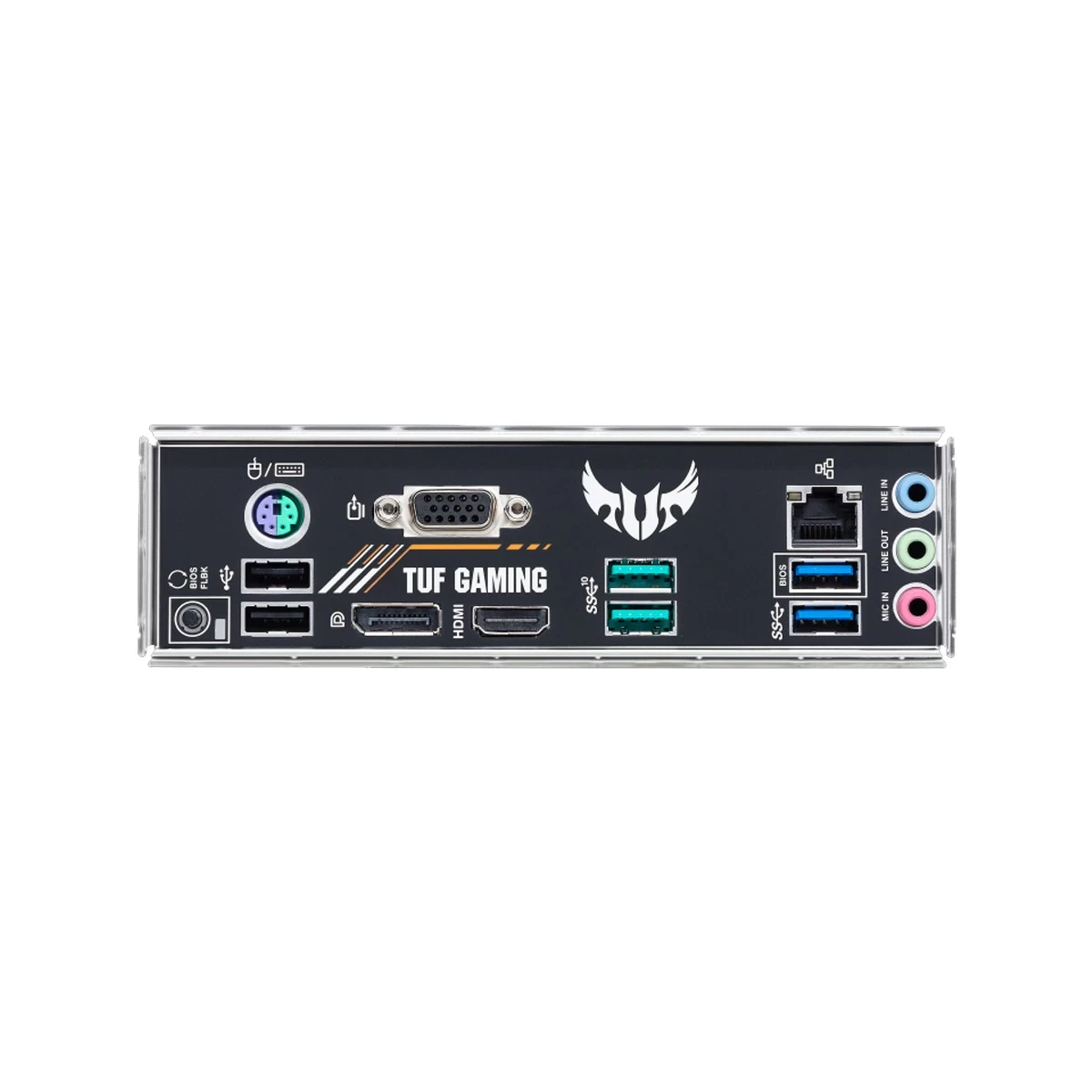

USB Port | 2 x USB 3.2 Gen 2 ports Type-A, 2 x USB 3.2 Gen 1 ports Type-A, 2 x USB 2.0 ports Type-A |
HDMI Port | 1 |
DisplayPort (DP) | 1 |
SATA Port | 4 |
TPM Port | 1 |
COM Port | 1 |
Technical Information | |
CrossFire Support | No |
Sli Support | No |
Raid Support | 0,1,10 |
RGB Support | Yes |
RGB Sync | Aura sync |
RGB Connector | 2 x AURA RGB headers |
Form Factor | Micro-ATX |
Bios Information | |
BIOS Type | 1 x 256 Mbit Flash ROM |
BIOS Model | UEFI AMI BIOS |
Compatibility | |
Supported Operating System | Windows 10 |
Warranty | |
Warranty | 3 Year |
Additional Info | |
Feature | ASUS TUF PROTECTION (DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-Slot, ASUS Thermal Solution, M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack button, BIOS FlashBack LED), AURA Sync ( AURA RGB headers, Addressable Gen 2 RGB headers), Armoury Crate, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, EZ update, TUF GAMING CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial version), WinRAR |
Others | Fan and Cooling related: (1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers), Power related: (1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector), USB: (1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports), Miscellaneous: (2 x AURA Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header) |
It supports DDR4 4866(OC)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz ram. Maximum ram supports 128GB. Also, you can use 2 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. DDR4 AMD Motherboard comes with Graphics. PCI Express Slot are 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1. The here audio chipset used Realtek ALC887/897.
Audio Channel available are 7.1, so you can .enjoy crystal clear sound. For Network and Connetivity purposes the Asus motherboard offers LAN Chipset lan chipset and it’s speeds 10/100/1000Mbps. USB port available Two USB 3.2 Gen 2 ports Type-A, Two USB 3.2 Gen 1 ports Type-A, Two USB 2.0 ports Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a mATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x Aura RGB Strip Headers RGB connector. The DDR4 AMD Motherboard supported operating system is Windows 10. You will get a 3 year brand warranty.
