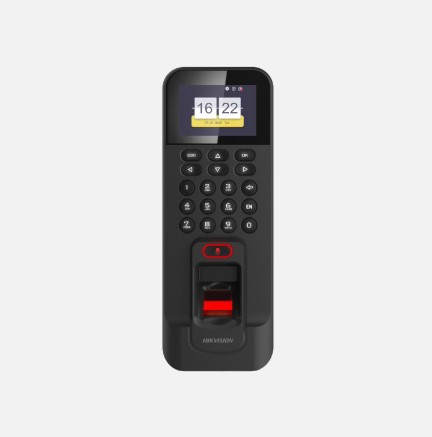

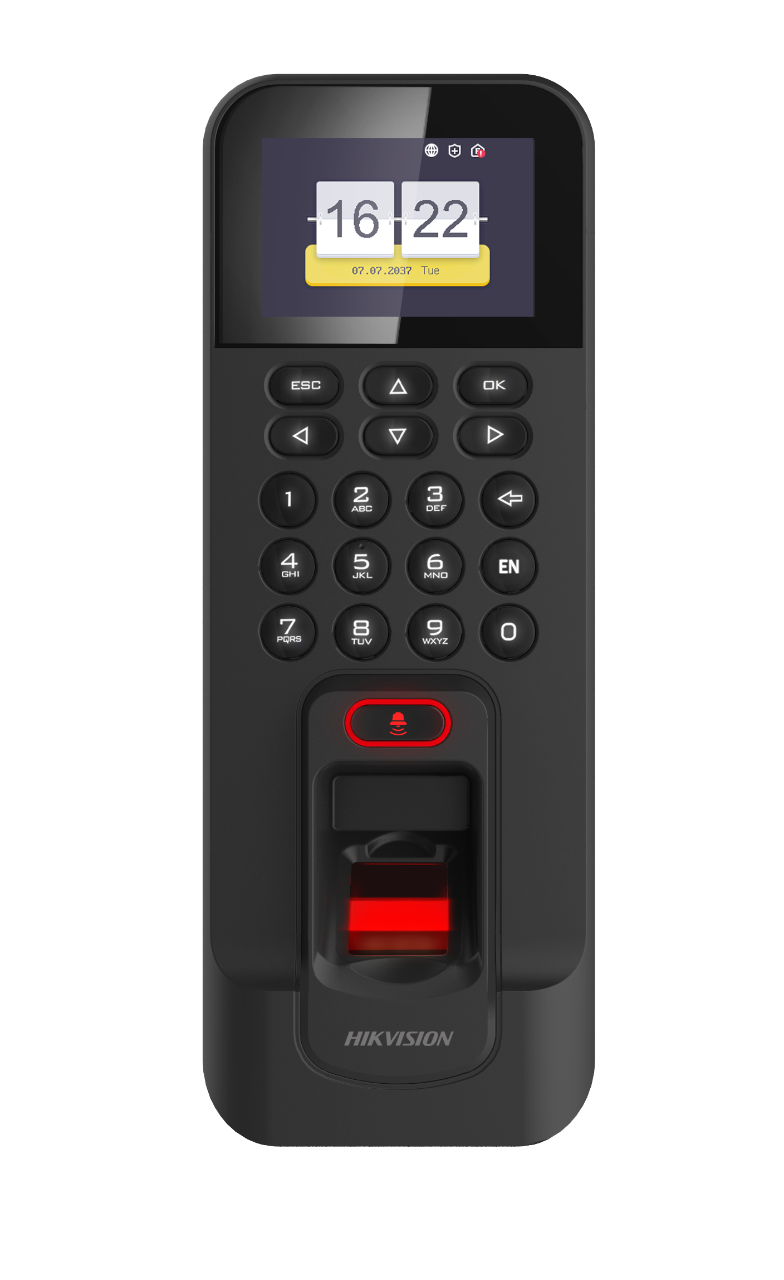

Hikvision Fingerprint Access Terminal (DS-K1T804)

Product Serial : 1431

(0 Reviews)

Sold by:
Inhouse product

Price:

~~/PC~~

Discount Price:

/PC

Top Selling Products

Description Reviews

Brand	Hikvision
Communication Interface	TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Working Temperature	-10 ° C to 55 ° C (14 ° F to 131 ° F)
Power Supply	12 VDC/2 A
Audio	1 Buzzer and 1 Loudspeaker
LED Indicator	Power/Status (Red/Green)
LCD Screen	2.4-inch (320 × 240 LCD-TFT Display Screen)
Fingerprint Capacity	Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
Storage	Up to 3000 Valid Cards, Up to 100,000 Event Records; Up to 150,000 Attendance Records
Card Reading Mode	Not Support
Input Interface	Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
Output Interface	Relay (Lock Output) × 1, and Alarm Output × 1
Operating System	Linux
Fingerprint Comparing Mode	1:1 and 1:N, N=3000
Card Reading Response Duration	< 1 s
Fingerprint Authentication Duration	< 1 s
FAR(False Accept Rate)	≤ 0.001 %
FRR (False Rejection Rate)	≤ 0.01 %
Fingerprint Recognizer	Optical Fingerprint Recognizer Module
External Card Reader	Standard Wiegand26/34
Card Reading Distance	Not Support
Keyboard	Keyboard (Back Light)
Reset Key	× 1
Wi-Fi	Support
Wiegand Interface	Output: Wiegand 26/34;Input: Wiegand 26/34
Transmission Rate	TCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
USB	USB 2.0; Type A
