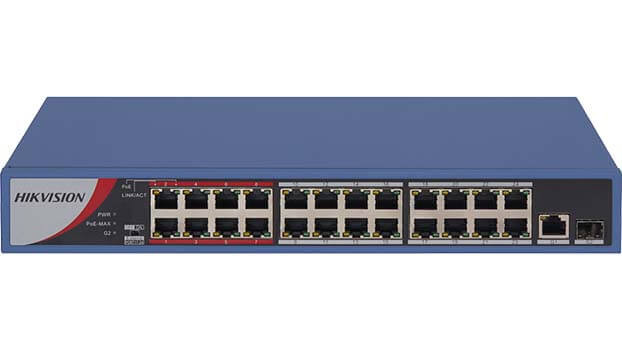

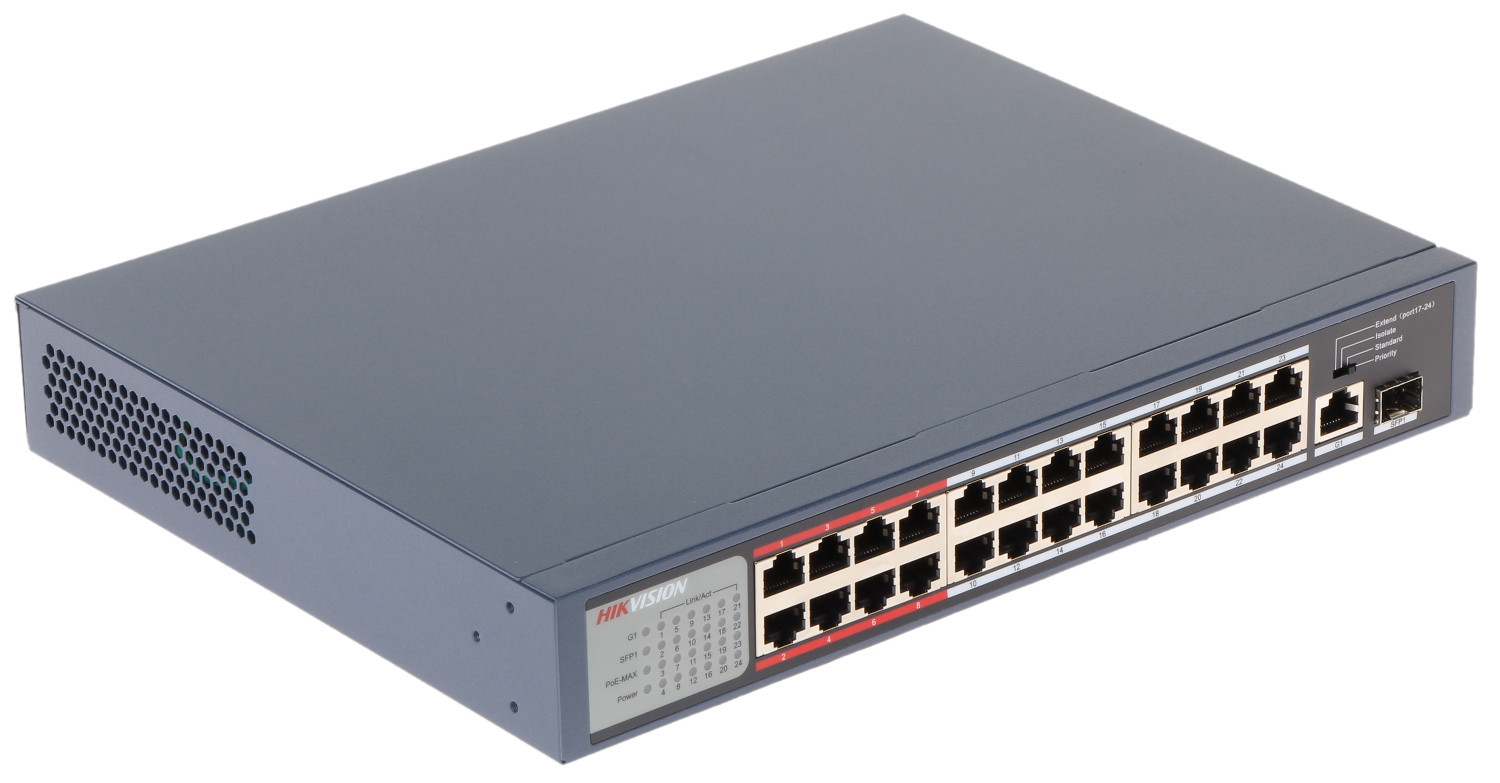

Hikvision POE Switch (DS-3E0326P-EM)

Product Serial : 1588

(0 Reviews)

Sold by:
Inhouse product

Price:

~~/PC~~

Discount Price:

/PC

Top Selling Products

Kieslect K11 Smart Watch

৳3,900.00
Vision Glass Door Refrigerator RE-240L Lotus Fl-Maroon-TM

৳30,900.00
Meril Petroleum Jelly

৳25.00
Walton Primo GH10i

৳8,290.00
Amazfit Band 5 Smart Fitness Tracker With SpO2 Black

৳3,590.00
Walton Direct Cool Refrigerator 252 Ltr (WFB-2B6-GDSH-XX)

৳32,732.00

Description Reviews

PRODUCT DETAILS

Brand	Hikvision
Type	POE Switch
Model	DS-3E0326P-EM
Network Parameters
Port Number	24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode	Standard mode (default); Extend mode
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode	Store-and-forward switching
Ports For Long-Distance Transmission	Ports 17 to 24
MAC Address Table	4 K
Internal Cache	2.75 Mbits
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.547 Mpps
High Priority Ports	Ports 1 to 8
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	230 W
Dialing Function
Long Range	Ports 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
General
Dimension (W × H × D)	335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity	5% to 95% (no condensation)
Gross Weight	3.33 kg (7.34 lb)
Net Weight	2.55 kg (5.6 lb)
Power Consumption In Idle	20 W
Shell	Metal material
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	5% to 95% (no condensation)
Power Supply	100 to 240 VAC, 50/60 Hz, Max. 4 A
Max. Power Consumption	250 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Feature:

-24 Port Fast Ethernet Unmanaged POE Switch

-Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

-Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

-4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.

-6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

-Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Download
