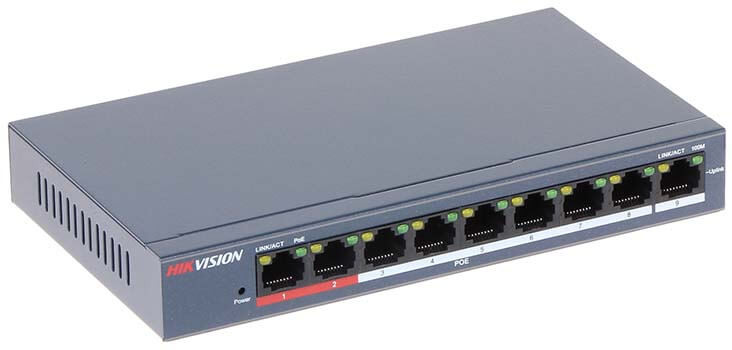

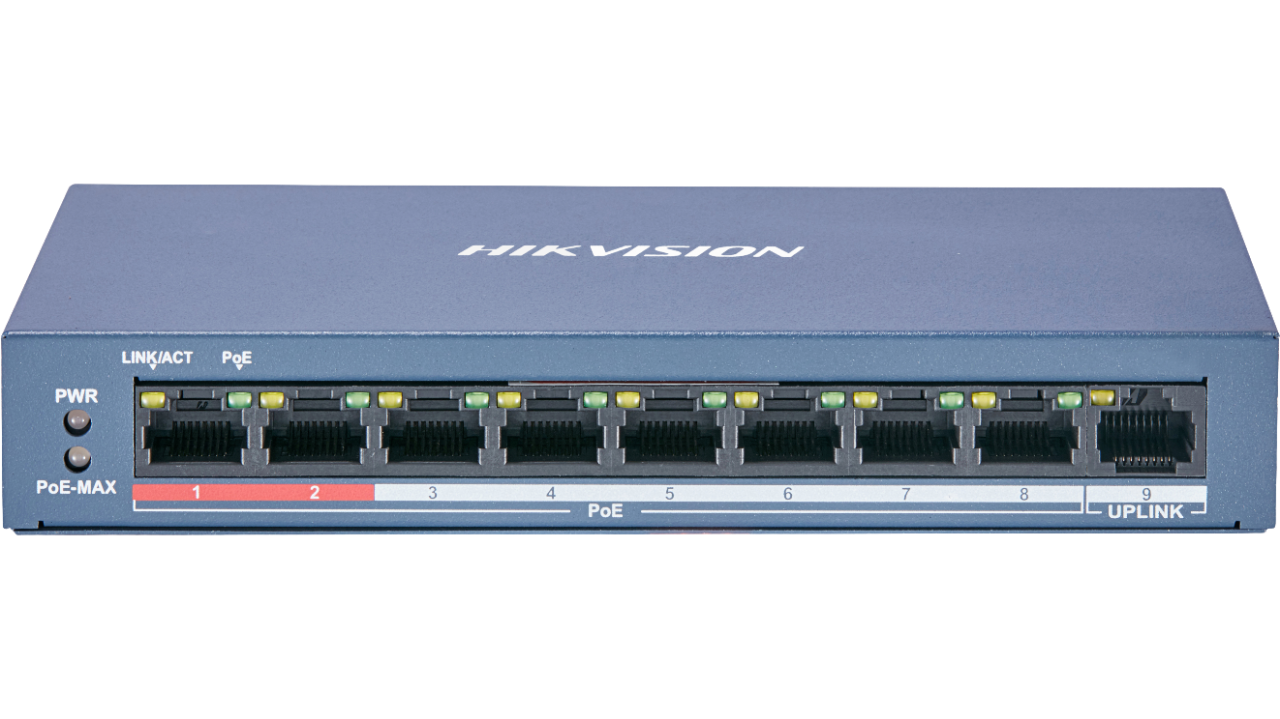

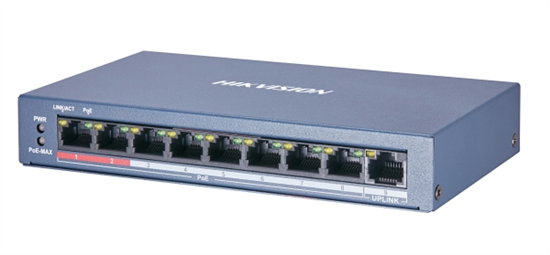

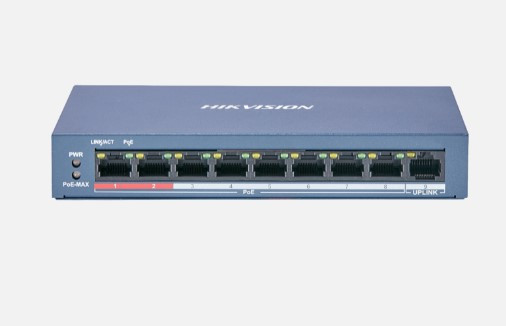

Brand | Hikvision |
Type | POE Switch |
Model | DS-3E0109P-E/M |
Network Parameters | |
Port Number | 8 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port |
Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
Working Mode | Standard mode (default); Extend mode |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Forwarding Mode | Store-and-forward switching |
Ports For Long-Distance Transmission | Ports 1 to 8 |
MAC Address Table | 2 K |
Internal Cache | 1 Mbits |
Switching Capacity | 1.8 Gbps |
Packet Forwarding Rate | 1.339 Mpps |
High Priority Ports | Ports 1 to 2 |
PoE Power Supply | |
PoE Standard | IEEE 802.3af, IEEE 802.3at |
PoE Power Pin | End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
PoE Port | Ports 1 to 8 |
Max. Port Power | 30 W |
PoE Power Budget | 60 W |
Dialing Function | Long Range Ports 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps. |
General | |
Dimension (W × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) |
Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
Storage Humidity | 5% to 95% (no condensation) |
Gross Weight | 0.89 kg (1.96 lb) |
Net Weight | 0.35 kg (0.77 lb) |
Power Consumption In Idle | 5 W |
Shell | |
Material | Metal |
Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Operating Humidity | 5% to 95% (no condensation) |
Power Supply | 48 VDC, 1.35 A |
Max. Power Consumption | 65 W |
Approval | |
EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006) |
Feature:
-Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
-Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
-4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
-6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the -switch from the sudden lightning surge in harsh environment.
-Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
