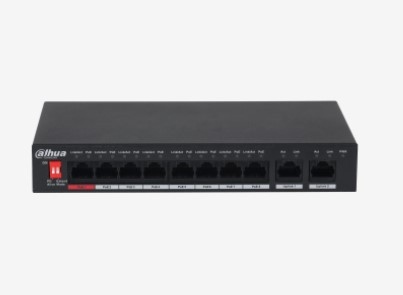

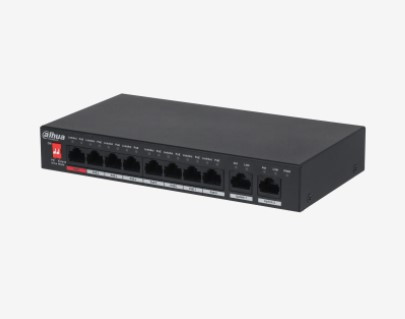

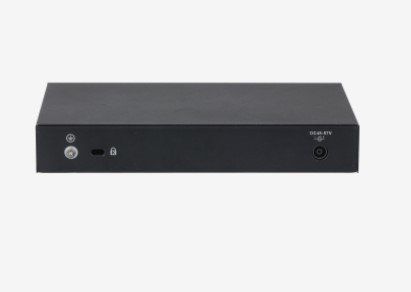

Brand | Dahua |
Type | Desktop PoE Switch |
Model | PFS3010-8ET-96 |
Hardware | |
Data Transmission Port | Port 1–8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) |
Power Supply | 48 V - 57 V DC |
Operating Temperature | –10 °C to +55 °C (+14°F to +131°F) |
Operating Humidity | 5% – 95% (RH) |
Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
Storage Humidity | 5% – 95% (RH) |
Power Consumption | |
Idling | 3 W |
Full load | 96 W |
Performance | |
Capacity | 5.60 Gbps |
Packet Forwarding Rate | 4.17 Mpps |
Packet Buffer Memory | 4 Mbit |
MAC Table Size | 8K |
Communication Standard | IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x |
PoE | |
PoE Standard | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
PoE Power | 96 W |
Power Consumption Management | Yes |
PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance PoE | 250 m long distance PoE transmission |
PoE Watchdog | Yes |
General | |
Statics Protection | Air discharge: 8 kV, Contact discharge: 6 kV |
Thunder-proof | Common mode: 4 kV, Differential mode: 2 kV |
Net Weight | 0.50 kg (1.10 lb) |
Gross Weight | 1.32 kg (2.91 lb) |
Product Dimensions | 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") |
Warranty | 1 Year |
-The parameters and datasheets below can only be applied to V2.0 (version 2.0).
-Intelligent PoE.
- 8-pin assignment PoE power supply.
-Long distance PoE.
- PoE watchdog.
-Wide working temperature.
