PRODUCT DETAILS
Brand | Antec |
Model | Antec NEO ECO Gold Zen 500W |
Series | NEO ECO Series |
PSU Category | Non Modular |
Type | ATX 12V 2.4 |
Cooling & Lighting
|
|
Fan Size | 120mm |
Performance
|
|
Efficiency | 92% Efficiency |
Efficiency Rating | 80 PLUS Gold |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500ms |
Protection
|
|
Protection | OCP/OVP/UVP/SCP/OPP/NLO |
Over Voltage Protection (OVP) | Yes |
Over Power Protection (OPP) | Yes |
Over Current Protection (OCP) | Yes |
Over Temperature Protection (OTP) | No |
Short Circuit Protection (SCP) | Yes |
Under Voltage Protection (UVP) | Yes |
Connectors |
|
ATX Main Connectors | 1 |
EPS Connectors | 1 |
PCIe Connectors | 2
|
SATA Power Connectors | 6
|
4-Pin Peripheral Connectors | 2
|
Power
|
|
Maximum Power | 500 Watt |
Input Voltage | 100 - 240V |
Input Frequency Range | 50Hz-60Hz |
Input Current | 6A-3A |
Operating Temperature | 0 - 40 degree C |
Physical Description
|
|
Dimensions | 140 x 150 x 86mm |
Weight (Kg) | 1.68 Kg |
Color | Black |
Warranty
|
|
Warranty
| 5 Year |
Additional Info
|
|
Regulatory / Safety Approval | cTUVus/TUV/CB[IEC62368 Compliant] /RCM/ CE/CCC/BSMI/FCC |
Specialty
| Features a Thermal Manager, an advanced low
voltage fan control for optimal heat & noise management and will
allow your PSU to stay at an optimal temperature. |

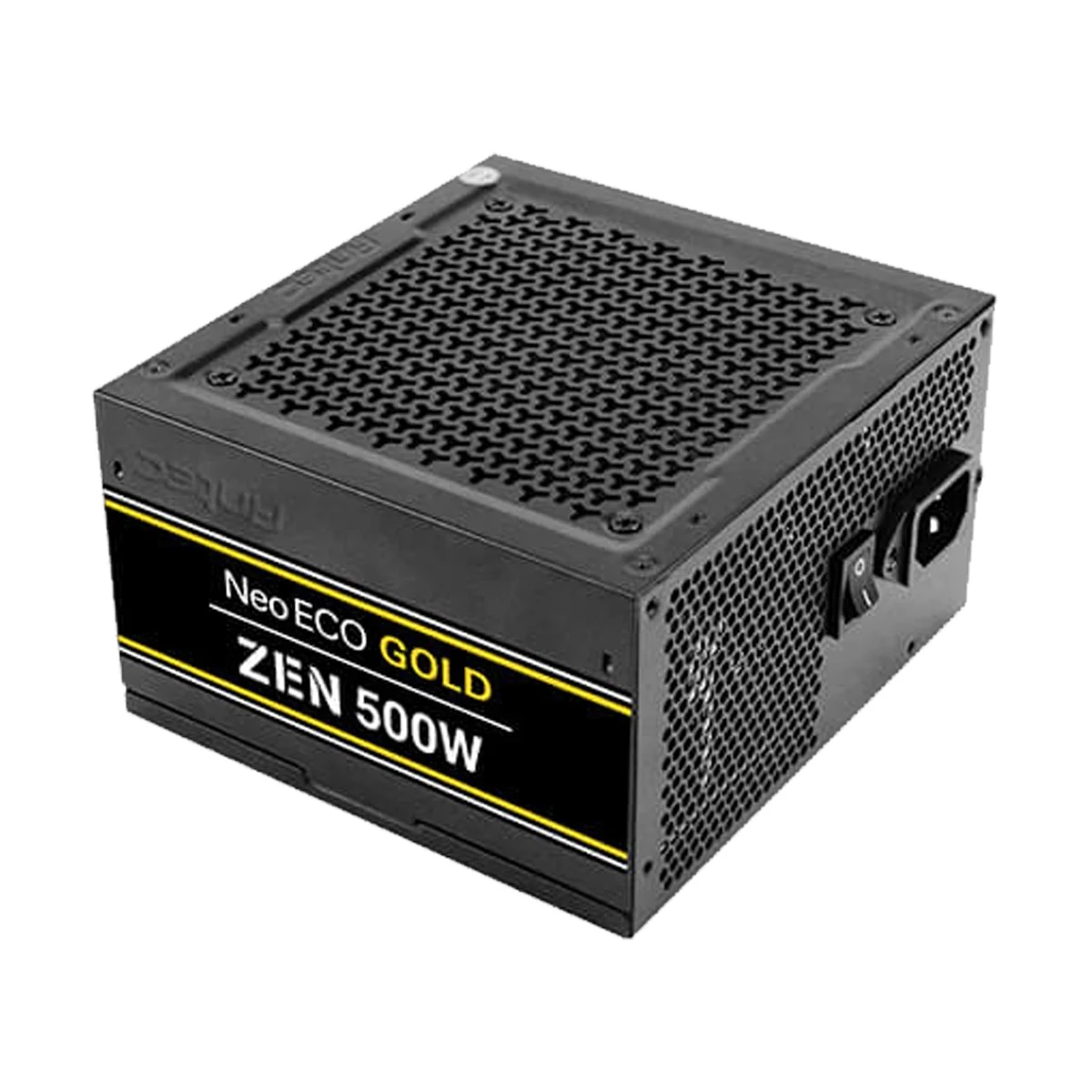

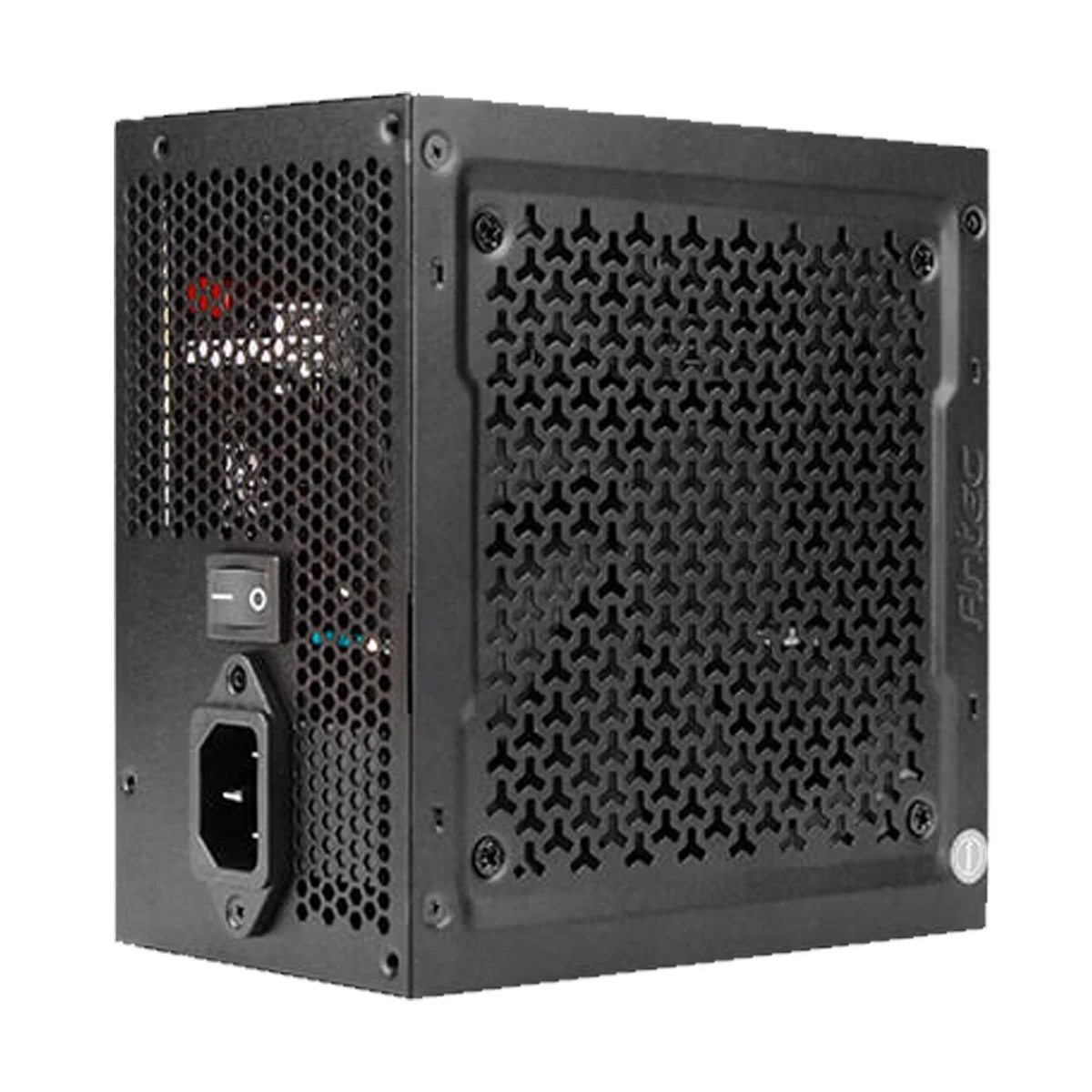

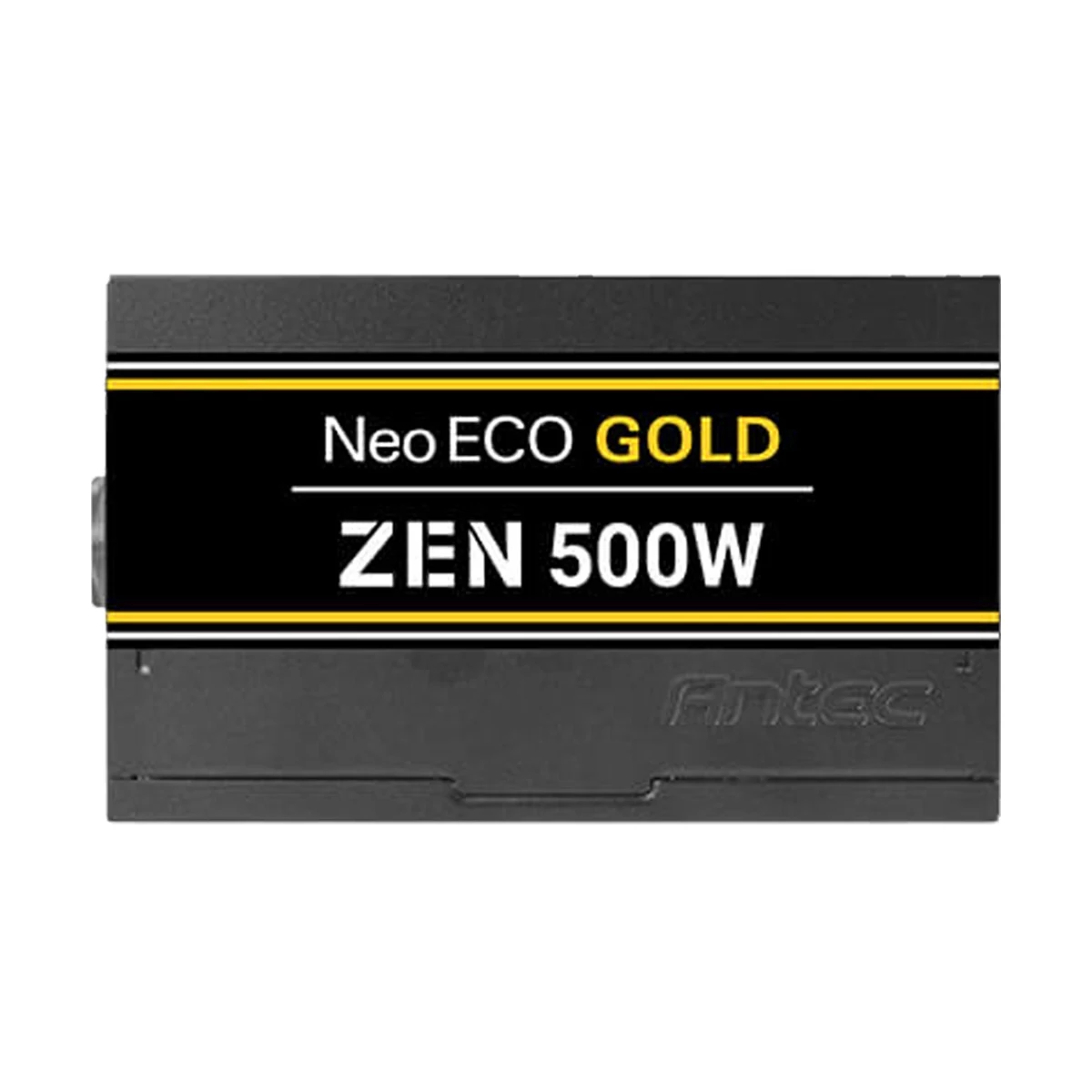

Antec NEO ECO Gold Zen 500W Non Modular Power Supply
Brand - Antec, Model - Antec NEO ECO Gold Zen 500W, Series - NEO ECO
Series, PSU Category - Non Modular, Type - ATX 12V 2.4, Maximum Power -
500 Watt, Input Voltage - 100-240 VAC, Input Frequency Range -
50Hz-60Hz, Input Current - 6A-3A, Fan Size - 120mm, Efficiency - 92%
Efficiency, 80 Plus Rating - 80 PLUS Gold, Protection -
OCP/OVP/UVP/SCP/OPP/NLO, Over Voltage Protection (OVP) - Yes, Over Power
Protection (OPP) - Yes, Over Current Protection (OCP) - Yes, Over
Temperature Protection (OTP) - No, Short Circuit Protection (SCP) - Yes,
Under Voltage Protection (UVP) - Yes, ATX Main Connectors - 1, EPS
Connectors - 1, PCIe Connectors - 2, SATA Power Connectors - 6, 4-Pin
Peripheral Connectors - 2, PFC (Power Factor Correction) - Active PFC,
Power Good Signal - 100 - 500ms, Operating Temperature - 0 - 40 degree
C, Dimension (W/H/D) - 140 x 150 x 86mm, Weight (Kg) - 1.68 Kg, Color -
Black, Regulatory / Safety Approval - cTUVus/TUV/CB[IEC62368 Compliant]
/RCM/ CE/CCC/BSMI/FCC, Specialty - Features a Thermal Manager, an
advanced low voltage fan control for optimal heat & noise management
and will allow your PSU to stay at an optimal temperature., Warranty - 5
Year.
