PRODUCT DETAILS
Brand | Antec |
Model | Antec High Current Gamer Extreme Series HCG1000 |
Series | Extreme |
PSU Category | Full Modular |
Type | ATX |
Cooling & Lighting
|
|
Fan Size | 135mm |
Zero RPM Fan Mode | Yes |
Performance
|
|
Efficiency | 92% Efficiency |
Efficiency Rating | 80 Plus Gold |
PFC (Power Factor Correction) | Active PFC (>0.9 typical) |
Power Good Signal | 100-500ms |
Protection
|
|
Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
Over Voltage Protection (OVP) | Yes |
Over Power Protection (OPP) | Yes |
Over Current Protection (OCP) | Yes |
Over Temperature Protection (OTP) | Yes |
Short Circuit Protection (SCP) | Yes |
Under Voltage Protection (UVP) | Yes |

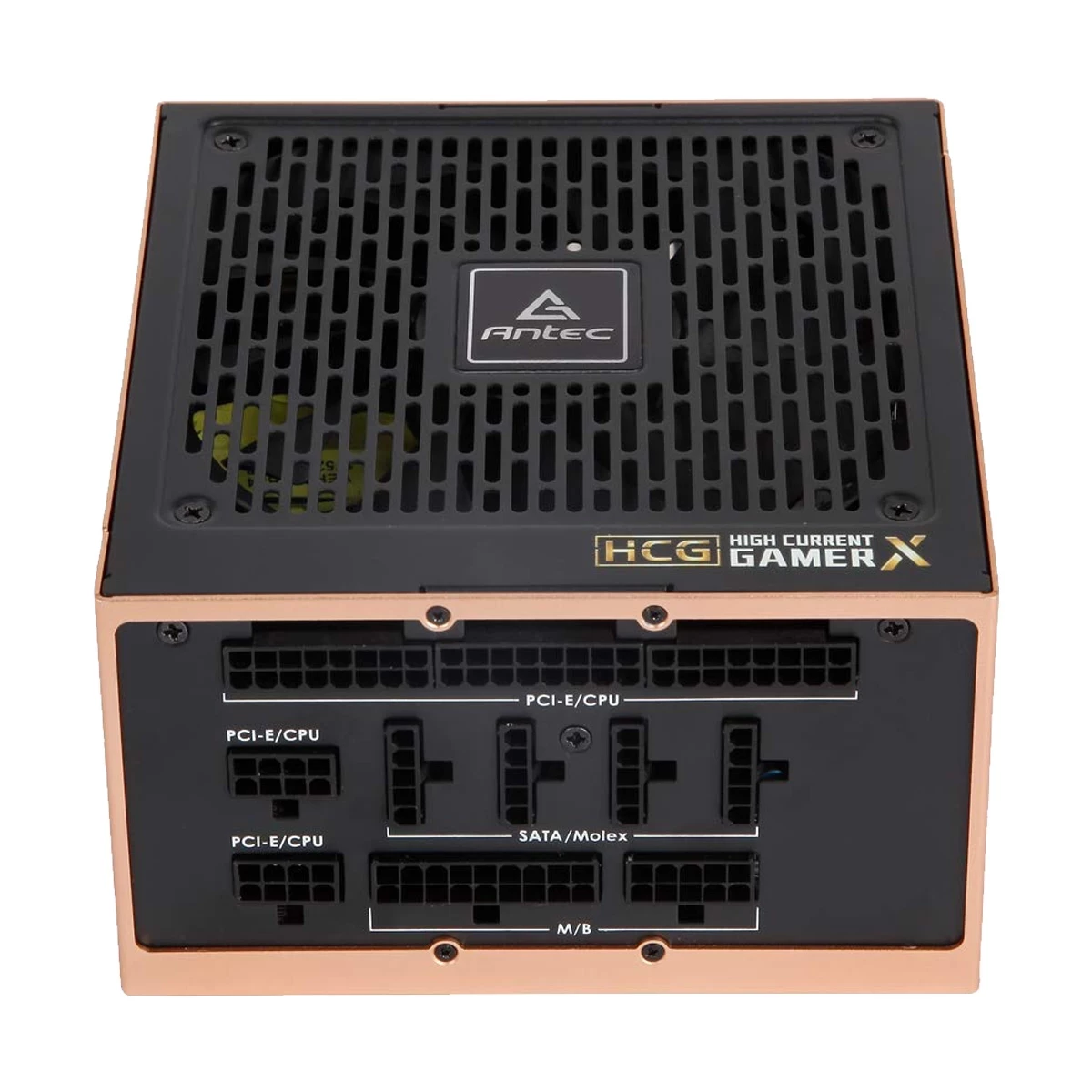

Connectors |
|
ATX Main Connectors | 1 |
EPS Connectors | 2 |
PCIe Connectors | 8
|
SATA Power Connectors | 12
|
4-Pin Peripheral Connectors | 6
|
Floppy Connectors | 1
|
Power
|
|
Maximum Power | 1000 Watt |
Input Voltage | 100 - 240 VAC +-10% |
Input Frequency Range | 50Hz-60Hz |
Input Current | 13A - 6.5A |
Operating Temperature | 0 - 50 degree C |
Physical Description
|
|
Form Factor | ATX |
Dimensions | 150 x 86 x 160mm |
Weight (Kg) | 1.66 Kg |
Warranty
|
|
Warranty
| 10 year |
Additional Info
|
|
Regulatory / Safety Approval | cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
Specialty
| 100% Modular Improves airflow and reduces
clutter, 80 PLUS GOLD certified Up to 92% efficient, to reduce your
electricity bill, 135mm FDB Silence Whisper-quiet high-quality
fluid-dynamic bearing fan with long lifetime, 99%+12V - Output for
maximum CPU & GPU support |

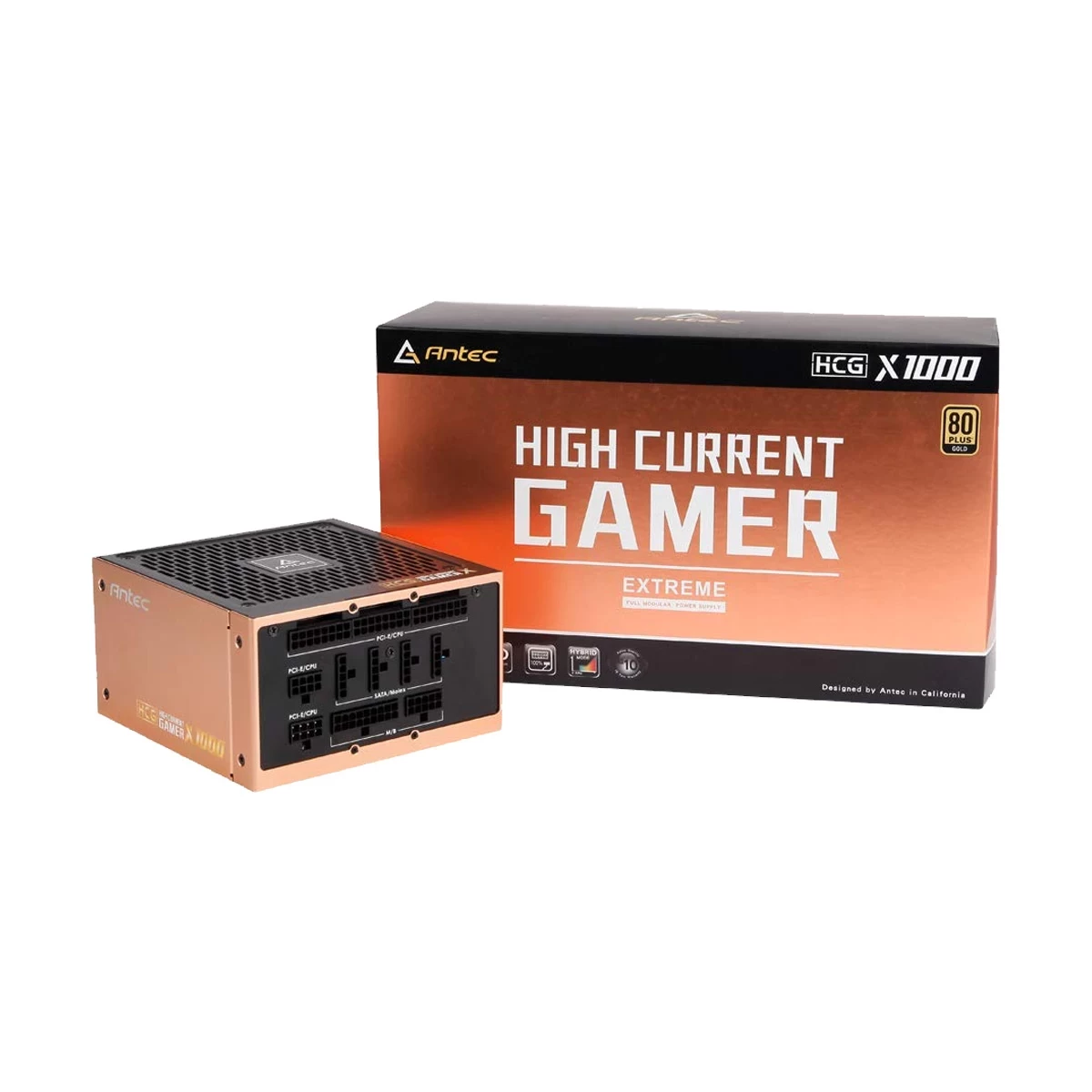

Antec High Current Gamer Extreme Series HCG1000 1000W ATX Fully Modular Power Supply
Brand - Antec, Model - Antec High Current Gamer Extreme Series HCG1000,
Series - Extreme, PSU Category - Fully Modular, Type - ATX, Maximum
Power - 1000 Watt, Input Voltage - 100 - 240 VAC +-10%, Input Frequency
Range - 50Hz-60Hz, Input Current - 13A - 6.5A, Fan Size - 135mm, Zero
RPM Fan Mode - Yes, Efficiency - 92% Efficiency, 80 Plus Rating - 80
Plus Gold, Protection - OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO, Over Voltage
Protection (OVP) - Yes, Over Power Protection (OPP) - Yes, Over Current
Protection (OCP) - Yes, Over Temperature Protection (OTP) - Yes, Short
Circuit Protection (SCP) - Yes, Under Voltage Protection (UVP) - Yes,
ATX Main Connectors - 1, EPS Connectors - 2, PCIe Connectors - 8, SATA
Power Connectors - 12, 4-Pin Peripheral Connectors - 6, Floppy
Connectors - 1, PFC (Power Factor Correction) - Active PFC (>0.9
typical), Power Good Signal - 100 - 500ms, Operating Temperature - 0 -
50 degree C, Form Factor - ATX, Dimension (W/H/D) - 150 x 86 x 160mm,
Weight (Kg) - 1.66 Kg, Regulatory / Safety Approval - cTUVus/TUV/CB
[IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR, Specialty - 100%
Modular Improves airflow and reduces clutter, 80 PLUS GOLD certified Up
to 92% efficient, to reduce your electricity bill, 135mm FDB Silence
Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime,
99%+12V - Output for maximum CPU & GPU support, Warranty - 10 Year,
Country of Origin - USA, Made in/ Assemble - China.
