PRODUCT DETAILS
Brand | Antec |
Model | HCG650 Gold |
Series | Gamer Gold Series |
PSU Category | Full Modular |
Type | ATX 12V 2.4 |
Cooling & Lighting
|
|
Fan Size | 120mm |
Zero RPM Fan Mode | Yes |
Fan Bearing | Fluid Dynamic Bearing |
Performance
|
|
Efficiency | 92% Efficiency |
Efficiency Rating | 80 Plus Gold |
Power Good Signal | 100-500ms |
Protection
|
|
Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
Over Voltage Protection (OVP) | Yes |
Over Power Protection (OPP) | Yes |
Over Current Protection (OCP) | Yes |
Over Temperature Protection (OTP) | Yes |
Short Circuit Protection (SCP) | Yes |
Under Voltage Protection (UVP) | Yes |
Connectors |
|
ATX Main Connectors | 1 x ATX 24 |
EPS Connectors | 1 x 8(4+4) Pin EPS 12V |
PCIe Connectors | 4 x 8(6+2) Pin PCI-E |
SATA Power Connectors | 8 x SATA |
Power
|
|
Maximum Power | 650 Watt |
Input AC | 9A-4.5A |
Input Voltage | 100 - 240V |
Input Frequency Range | 50Hz-60Hz |
Input Current | 9A-4.5A |
Operating Temperature | 0 - 40 degree C |
Physical Description
|
|
Dimensions | 140 x 150 x 86mm |
Weight (Kg) | 2.04Kg |
Color | Black |
Warranty
|
|
Warranty
| 10 year |
Additional Info
|
|
Regulatory / Safety Approval | cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
Others | Connector: 3 x Molex, 1 x FDD, Gross Weight:
3.36Kg, PFC: Active PFC (>0.9 typical), Zero RPM Manager: An advanced
low voltage fan control with fan-off mode at low loads for absolute
silence, |
Specialty
| Compact size 140mm depth power supply is the
best choice for compact ATX chassis, 28(18+10) pin MBU socket - For
possible future MBU connectors, 100% Japanese capacitors achieve
unprecedented tight voltage regulation & low ripple & noise to
maximize your systems performance, 120mm FDB Silence Whisper-quiet
high-quality fluid-dynamic bearing fan with long lifetime |

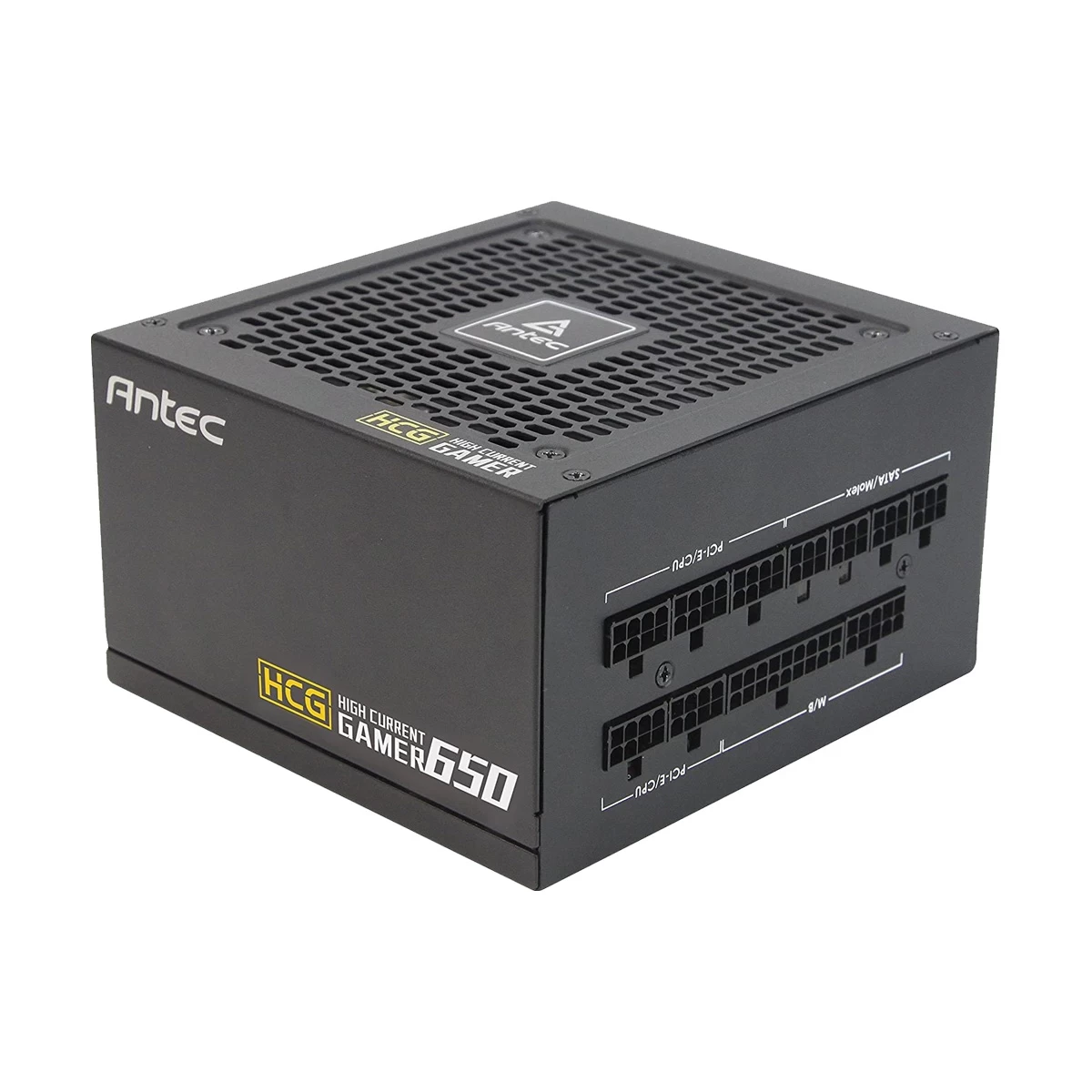

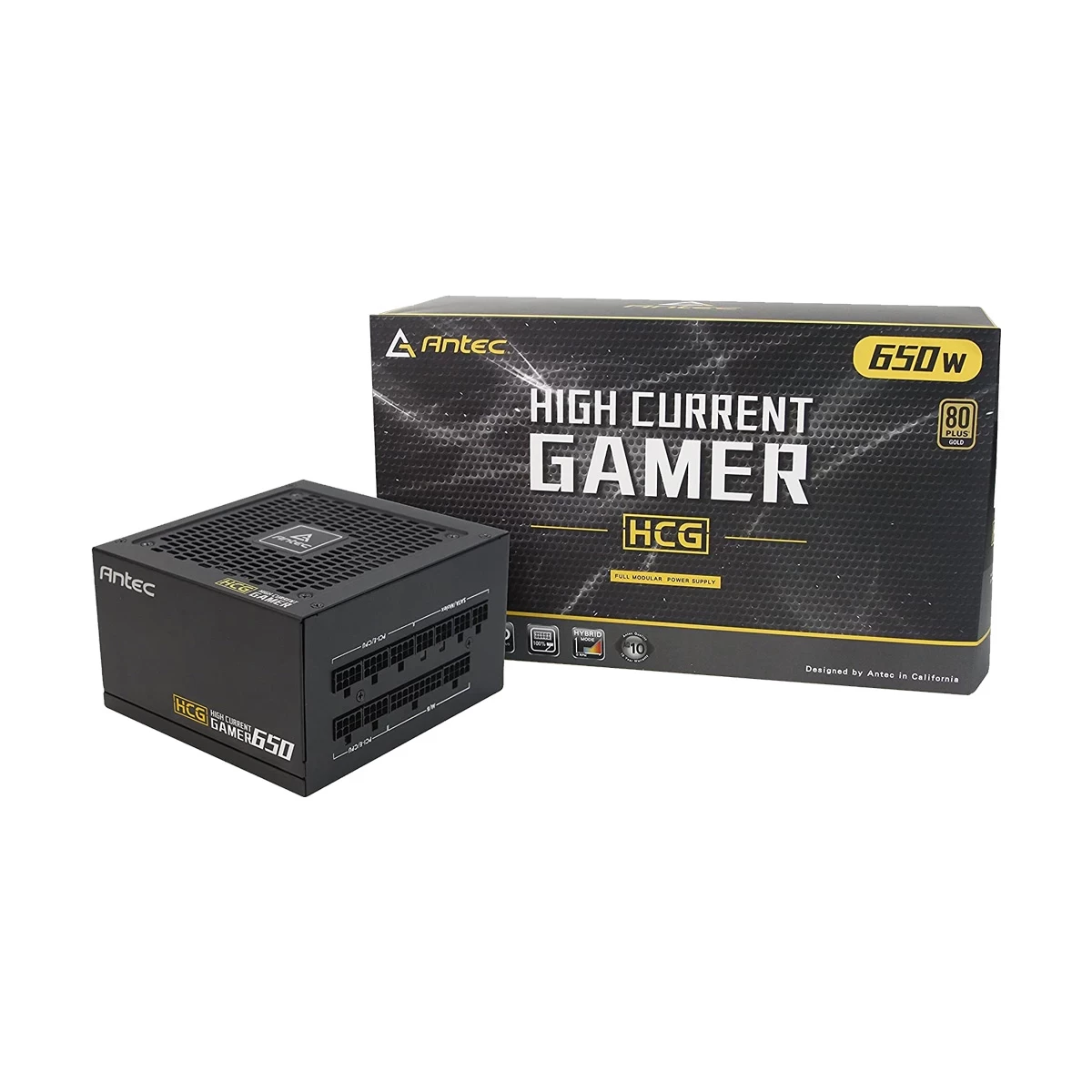

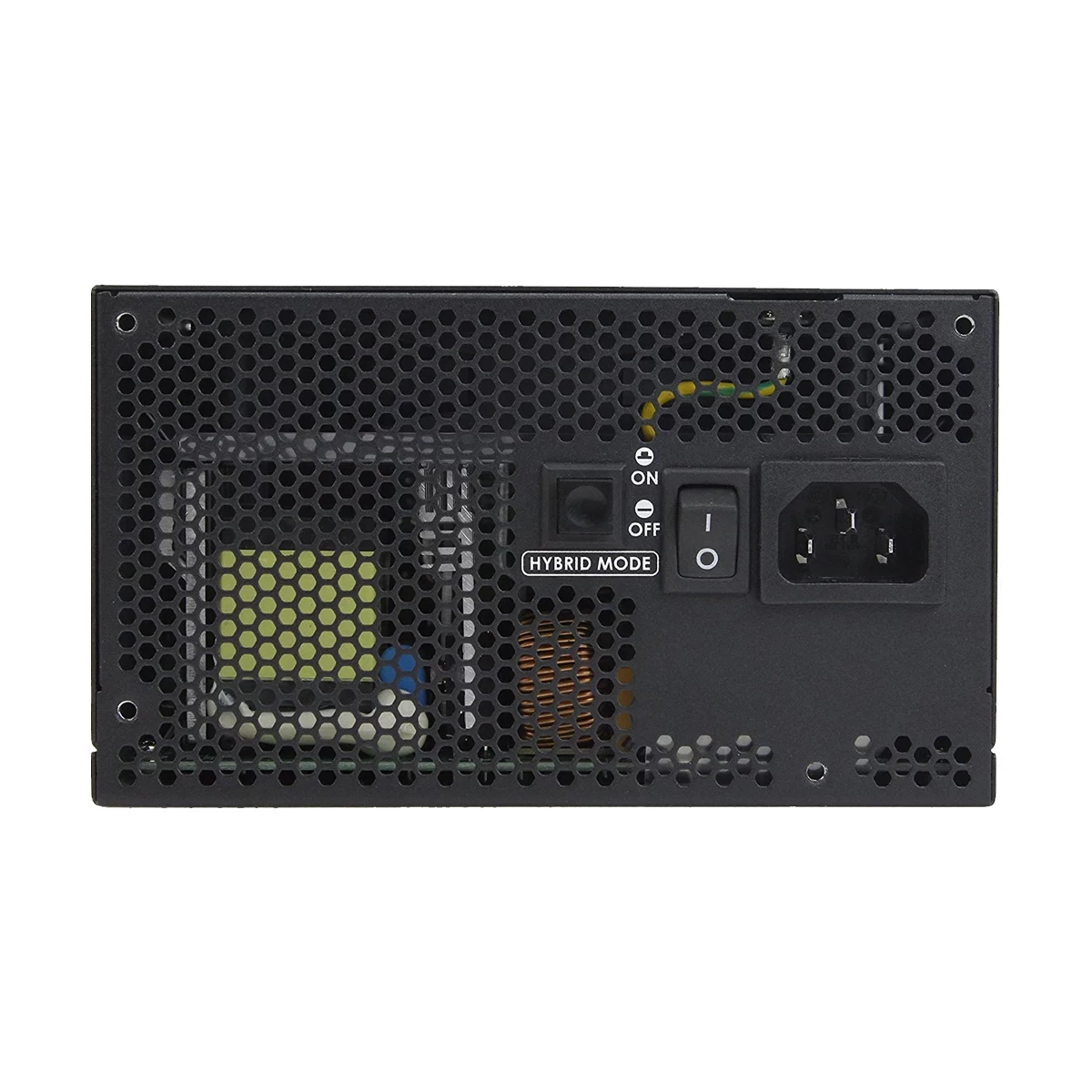

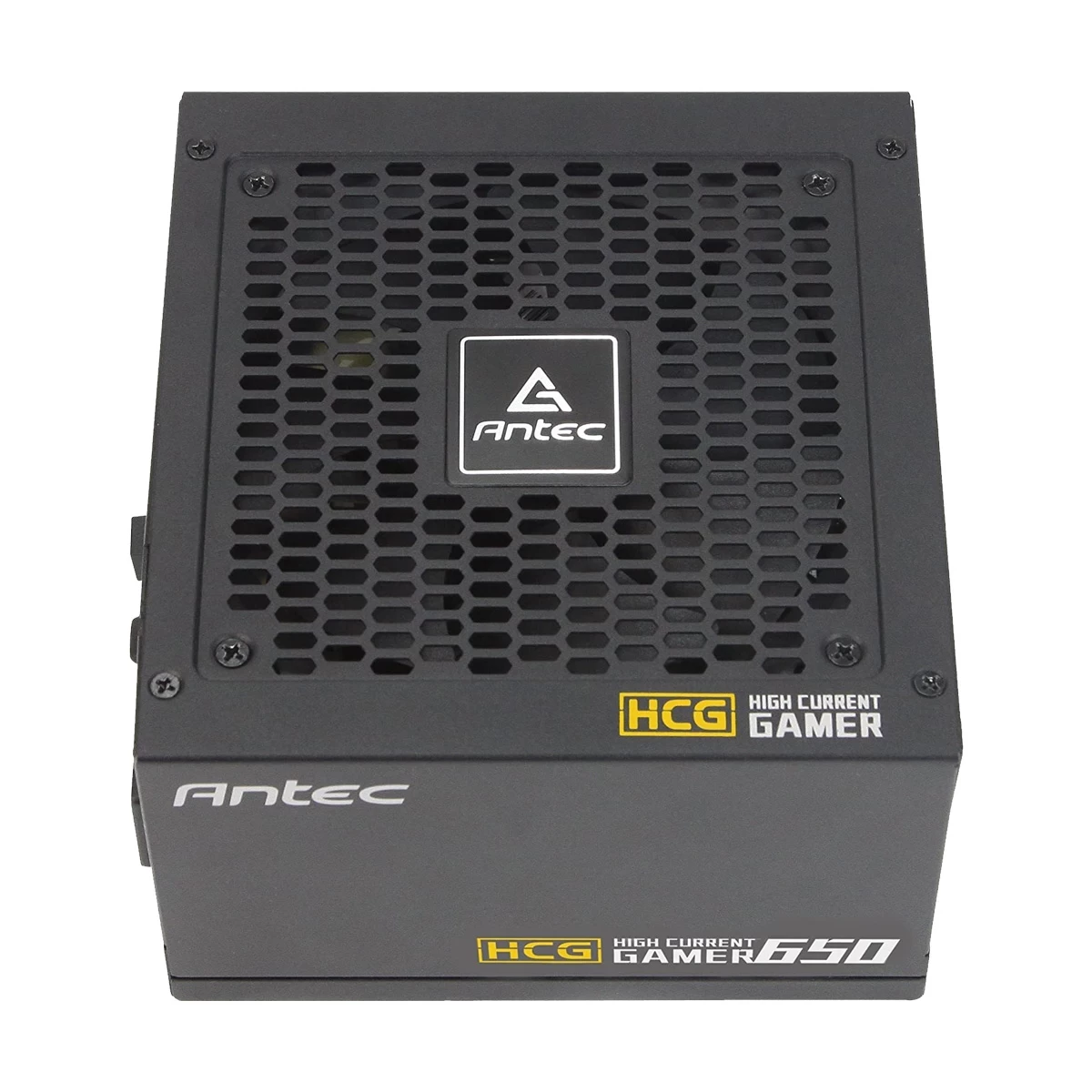

Antec High Current Gamer Gold Series 650W Full Modular Power Supply
Brand - Antec, Model - HCG650 Gold, Series - Gamer Gold Series, PSU
Category - Full Modular, Type - ATX 12V 2.4, Maximum Power - 650 Watt,
Input AC - 9A-4.5A, Input Voltage - 100-240V, Input Frequency Range -
50-60 Hz, Input Current - 9A-4.5A, Fan Size - 120mm, Zero RPM Fan Mode -
Yes, Fan Bearing - Fluid Dynamic Bearing, Efficiency - 92% Efficiency,
80 Plus Rating - 80 plus Gold, Protection - OCP, OVP, UVP, SCP, OPP,
OTP, SIP, NLO, Over Voltage Protection (OVP) - Yes, Over Power
Protection (OPP) - Yes, Over Current Protection (OCP) - Yes, Over
Temperature Protection (OTP) - Yes, Short Circuit Protection (SCP) -
Yes, Under Voltage Protection (UVP) - Yes, ATX Main Connectors - 1 x ATX
24, EPS Connectors - 1 x 8(4+4) Pin EPS 12V, PCIe Connectors - 4 x
8(6+2) Pin PCI-E, SATA Power Connectors - 8 x SATA, Power Good Signal -
100 - 500ms, Operating Temperature - 0 - 40 degree C, Dimension (W/H/D) -
140 x 150 x 86mm, Weight (Kg) - 2.04Kg, Color - Black, Regulatory /
Safety Approval - cTUVus/TUV/CB [IEC62368 Compliant]
/RCM/CE/EAC/CCC/BSMI/FCC/KR, Others - Connector: 3 x Molex, 1 x FDD,
Gross Weight: 3.36Kg, PFC: Active PFC (>0.9 typical), Zero RPM
Manager: An advanced low voltage fan control with fan-off mode at low
loads for absolute silence,, Specialty - Compact size 140mm depth power
supply is the best choice for compact ATX chassis, 28(18+10) pin MBU
socket - For possible future MBU connectors, 100% Japanese capacitors
achieve unprecedented tight voltage regulation & low ripple &
noise to maximize your systems performance, 120mm FDB Silence
Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime,
Warranty - 10 Year.
