PRODUCT DETAILS
| Brand | Antec |
| Model | Antec NEO ECO 650M V2 |
| Series | NEO ECO Series |
| PSU Category | Semi Modular |
| Type | ATX 12V 2.4 |
Cooling & Lighting
|
|
| Fan Size | 120mm |
Performance
|
|
| Efficiency | 88% Efficiency |
| Efficiency Rating | 80 PLUS Bronze |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500ms |
Protection
|
|
| Protection | OCP / OVP / UVP / SCP / OPP / NLO |
| Over Voltage Protection (OVP) | Yes |
| Over Power Protection (OPP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Temperature Protection (OTP) | No |
| Short Circuit Protection (SCP) | Yes |
| Under Voltage Protection (UVP) | Yes |
| Connectors |
|
| ATX Main Connectors | 1 |
| EPS Connectors | 1 |
| PCIe Connectors | 4
|
| SATA Power Connectors | 6
|
| 4-Pin Peripheral Connectors | 3
|
Power
|
|
| Maximum Power | 650 Watt |
| Input Voltage | 100 - 240V |
| Input Frequency Range | 47Hz - 63Hz |
| Input Current | 10A - 5A |
| Operating Temperature | 0 - 40 degree C |
Physical Description
|
|
| Dimensions | 140 x 150 x 86mm |
| Weight (Kg) | 2.23 Kg |
| Color | Black |
Warranty
|
|
Warranty
| 5 Year |
Additional Info
|
|
| Regulatory / Safety Approval | cTUVus / TUV / CB[IEC62368 Compliant] / RCM / CE / CCC / BSMI / FCC |
| Others | No-load Operation (NLO): Yes |
Specialty
| 120mm silent Fan, Up to 88% efficient, to reduce your electricity bill. |

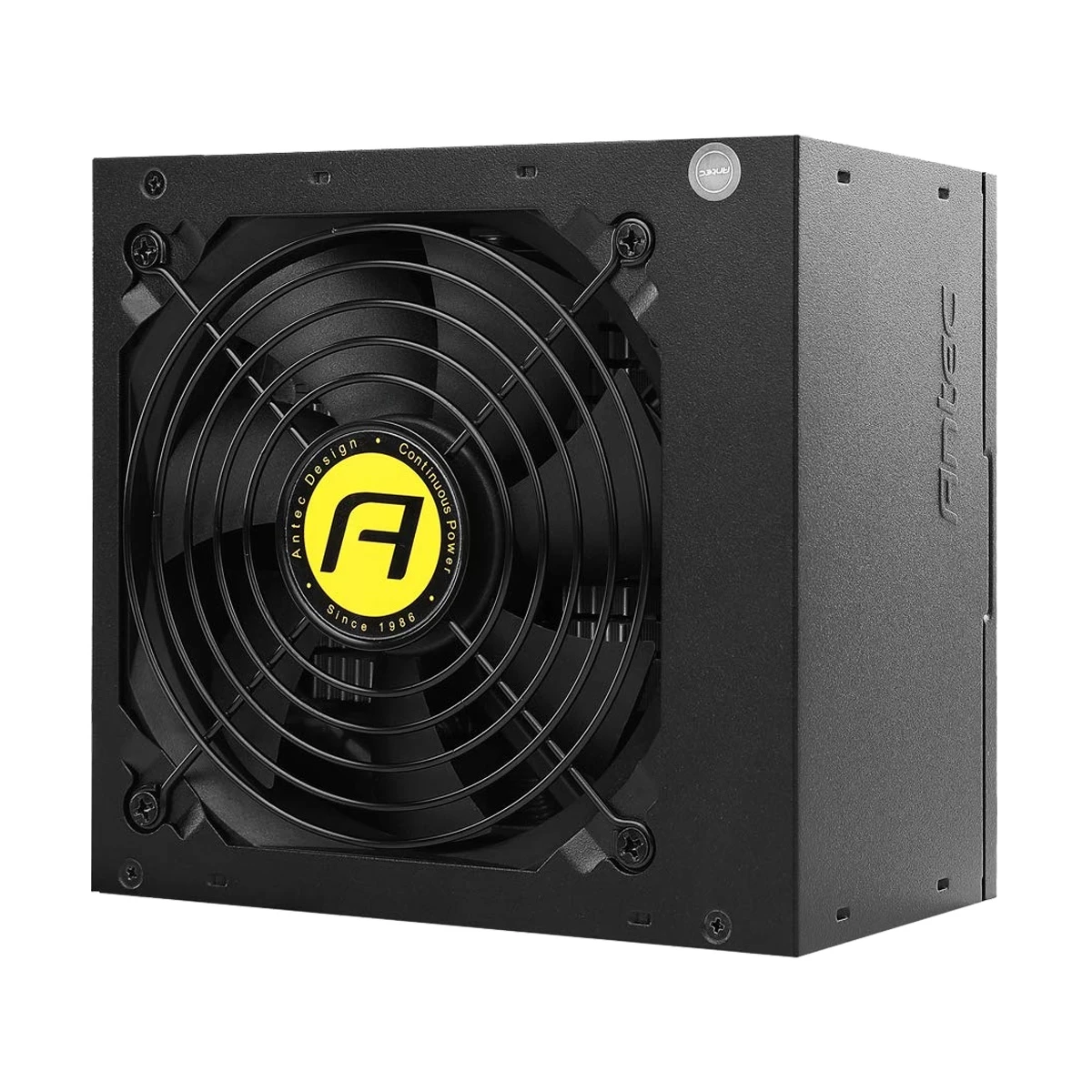

Antec NEO ECO 650M V2 650W ATX 12V 2.4 Semi Modular Power Supply
Brand - Antec, Model - Antec NEO ECO 650M V2, Series - NEO ECO Series,
PSU Category - Semi Modular, Type - ATX 12V 2.4, Maximum Power - 650
Watt, Input Voltage - 100 - 240Vac, Input Frequency Range - 47Hz - 63Hz,
Input Current - 10A - 5A, Fan Size - 120mm, Efficiency - 88%, 80 Plus
Rating - 80 PLUS Bronze, Protection - OCP / OVP / UVP / SCP / OPP / NLO,
Over Voltage Protection (OVP) - Yes, Over Power Protection (OPP) - Yes,
Over Current Protection (OCP) - Yes, Over Temperature Protection (OTP) -
No, Short Circuit Protection (SCP) - Yes, Under Voltage Protection
(UVP) - Yes, ATX Main Connectors - 1, EPS Connectors - 1, PCIe
Connectors - 4, SATA Power Connectors - 6, 4-Pin Peripheral Connectors -
3, PFC (Power Factor Correction) - Active PFC, Power Good Signal -
100-500ms, Operating Temperature - 0 - 40 degree C, Dimension (W/H/D) -
140 x 150 x 86mm, Weight (Kg) - 2.23 Kg, Color - Black, Regulatory /
Safety Approval - cTUVus / TUV / CB[IEC62368 Compliant] / RCM / CE / CCC
/ BSMI / FCC, Others - No-load Operation (NLO): Yes, Specialty - 120mm
silent Fan, Up to 88% efficient, to reduce your electricity bill.,
Warranty - 5 Year
