Brand | Uniview |
Type | DVR |

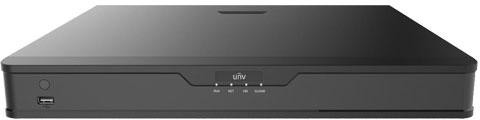

Model | NVR302-16S2-P16 |
Video/Audio Input | |
Two-way Audio Input | 1-ch, BNC |
IP Video Input | 16-ch (only IP up to 10ch) |
HDMI Output | 4K (3840×2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 |
VGA Output | 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Network | |
Incoming Bandwidth | 160Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Frame Rate | |
Audio Output | 1-ch, RCA |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Live View/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
Hard Disk | |
SATA | 2 SATA interface |
Capacity | up to 10TB for each disk |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
Alarm In | 4-ch, RCA |
Alarm out | 1-ch, RCA |
Supported Standard | IEEE 802.3af/at |
Interface | 8 independent 100 Mbps PoE network interfaces |
Max Power | |
single port | Max 30W |
In total | 240W |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 100 ~ 240 V AC |
Power Consumption | ≤ 10 W (without HDD) |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 380 mm × 315mm × 46 mm(15″ × 12.4″×1.8″) |
Weight (without HDD) | ≤2.6kg (5.73lb) |
Warranty | 1 Year |
- 16-channel input
-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile .
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution.
- HDMI and VGA simultaneous output.
- Up to 8 Megapixels resolution recording.
- 2 SATA HDDs, up to 10TB for each HDD.
-Various fisheye dewarping modes for live view and playback for both web interface and GUI.
- Plug & Play with up to 8/16 independent PoE network interfaces.
- ANR technology to enhance the storage reliability when the network is disconnected.
- Support cloud upgrade.
