Brand | Dahua |
Model | N18P |
Display | |
Multi-Screen Display | 1/4/8/9 |
Recording | |
Compression | Smart H.265+/H265/Smart H.264+/H.264 |
Resolution | 1080P/720P |
Record Mode | Manual/Alarm/Motion detection/Schedule |
Playback And Backup | |
Playback Function | 1/4 |
Backup Mode | USB Device |
Network | |
Interface | 2 x USB Ports 1 x SATA Port 4 x PoE Ports 1 x Network Port 1 x RCA In 1 x RCA Out 1 x HDMI Port 1 x VGA Port 1 x Power Port |
PoE | 4 x PoE Ports |
Storage | |
Internal HDD | 1 x SATA Port Up to 8TB HDD/Cloud Storage |
Auxiliary Interface | |
USB | 2 x USB Ports |
Power | |
Power Supply | DC48V 1.25A / DC53V 1.22 A |
Power Consumption | ≤10W(without HDD) |
Component Environment | |
Operational Conditions | -10℃~+45℃(+14℉~+113℉) 10℅~90℅RH |
Dimensions | 260mm×225mm×47.6mm (10.24" ×8.86" ×1.87" ) |
Net Weight | 0.84kg(1.85lb) |
Warranty | 1 year |

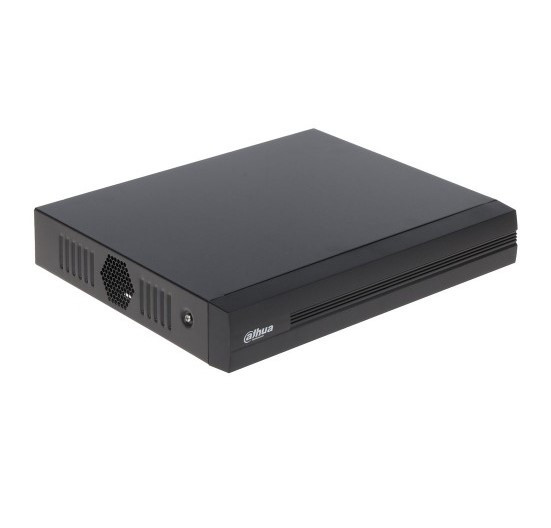

The Dahua imou N18P 8 Channel PoE NVR is used to record videos and secure your home or business. Using Power over Ethernet technology,the recorder could provide the electricity and network for each camera via a Cat 5e/Cat 6 network cable. It supports Plug and Play. It can record up to 1080P resolution and supports H.265 & H.264 video compression technology.
It has 1 SATA III interface, up to 8TB is supported. Using a hard disk drive, the recorder could uninterrupted record for a long time, and now easily store for more than a month by using the smart H.265 codec. You can playback the details every time. It also features Auto Pairing, Camera Repeater, Two-way Talk, ONVIF, and so on.
