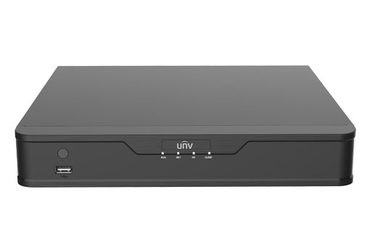

UNV Network Video Recorder (NVR302-08E-P8-B)
Product Serial : 1451
Inhouse product
-
Kieslect K11 Smart Watch
৳3,900.00 -
Meril Petroleum Jelly
৳25.00 -
Walton Primo GH10i
৳8,290.00
PRODUCT DETAILS
| Brand | Uniview |
| Type | DVR |
| Model | NVR302-08E-P8-B |
| Video/Audio Input | |
| Two-way Audio Input | 1-ch, BNC |
| IP Video Input | 8-ch (only IP up to 10ch) |
HDMI Output | 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| VGA Output | 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Frame Rate | |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | up to 10TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch, RCA |
| Alarm out | 1-ch, RCA |
| Supported Standard | IEEE 802.3af/at |
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max Power | |
| single port | Max 30W |
| In total | 130W |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 100 ~ 240 V AC |
| Power Consumption | ≤ 12 W (without HDD) |
| Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380 mm × 315mm × 46 mm(15″ × 12.4″×1.8″) |
| Weight (without HDD) | ≤2.42kg（5.34lb） |
| Warranty | 2 Years |
- 8-channel input.
-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile .
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution.
- HDMI and VGA simultaneous output.
- Up to 12 Megapixels resolution recording.
- 2 SATA HDDs, up to 10TB for each HDD.
-Various fisheye dewarping modes for live view and playback for both web interface and GUI.
- Plug & Play with up to 8/16 independent PoE network interfaces.
- ANR technology to enhance the storage reliability when the network is disconnected.
- Support cloud upgrade.
