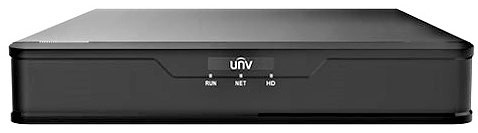

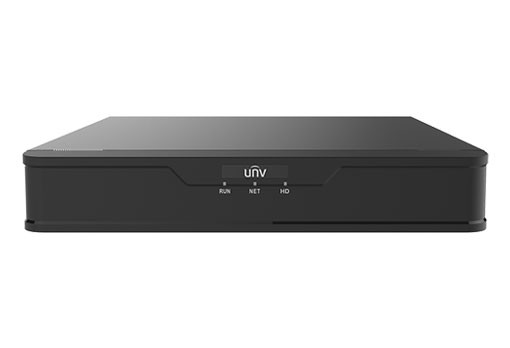

Brand | Uniview |
Type | DVR |
Model | NVR301-08S2-P8 |
Video/Audio Input | |
Analog Video Input | 8-ch, BNC |
IP Video Input | 8-ch (only IP up to 10ch) |
HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Network | |
Incoming Bandwidth | 50Mbps |
Outgoing Bandwidth | 40Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Recording Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Frame Rate | |
Main stream | 3MP@8fps, 1080p@12fps, 720@30fps,960H@30fps |
Sub stream | 960H/D1@12fps,CIF/QCIF@25fps/30fps |
Audio Output | 1-ch, RCA |
Synchronous Playback | 8-ch |
Corridor Mode Screen | 3/4/5/7/9 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Live View/Playback | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 6MP@20,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@ 30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 2 x USB2.0 |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
Max Power | |
single port | Max 30W |
In total | Max 75W |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 52V DC |
Power Consumption | ≤ 9 W (without HDD) |
Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm×240mm×46mm (10.2″×9.4″×1.7″) |
Weight (without HDD) | 1.1kg (2.43 lb) |
Warranty | 1 Year |
Feature:
-Support Ultra 265/H.265/H.264 video formats.
-8-channel input.
-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile .
-Support 1-ch HDMI, 1-ch VGA.
-HDMI and VGA simultaneous output.
-Up to 6MP resolution recording.
-1 SATA HDD up to 6 TB.
-Support cloud upgrade.
