Brand | Uniview |
Type | DVR |

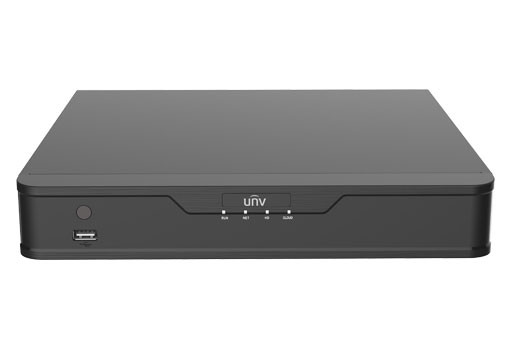

Model | NVR201-08Q |
Video/Audio Input | |
Analog Video Input | 8-ch, BNC |
IP Video Input | 2-ch (only IP up to 10ch) |
Supported Analog Camera Types | |
Support AHD input | 3MP@30fps, 1080P@30 fps, 720P@30fps |
Support TVI input | 3MP@20fps, 1080P@30fps, 720P@60fps |
Support CVI input | 1080P@30fps, 720P@60fps |
Support CVBS input | |
Audio Input | 4-ch, RCA |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 40Mbps |
Outgoing Bandwidth | 40Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
CVBS Output | 1-ch, BNC |
HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
Recording Resolution | 3MP/1080p/720p/960H/4CIF/CIF/QCIF |
Frame Rate | |
Main stream | 3MP@8fps, 1080p@12fps, 720@30fps,960H@30fps |
Sub stream | 960H/D1@12fps,CIF/QCIF@25fps/30fps |
Audio Output | 1-ch, RCA |
Synchronous Playback | 10-ch |
Decoding | |
Decoding format | H.264 |
Live View/Playback | 8MP (IP)/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | Up to 10TB for each HDD |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
Serial Interface | 1xRS485 |
USB Interface | Rear panel: 1xUSB2.0, Front panel: 1xUSB2.0 |
General | |
Power Supply | 12V DC |
Power Consumption | ≤ 5 W (without HDD) |
Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm×240mm×44mm (10.2″×9.4″×1.7″) |
Weight (without HDD) | ≤ 1.12 Kg (2.47 lb) |
Warranty | 1 Year |
Feature:
• Support H.264 video formats.
• Support AHD, TVI, CVI, CVBS, IP cameras with adaptive access.
• 8-channel BNC input.
• Up to 5MP resolution for recording.
• Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P.
• Long transmission distance over coax cable.
