Brand | Uniview |
Type | DVR |

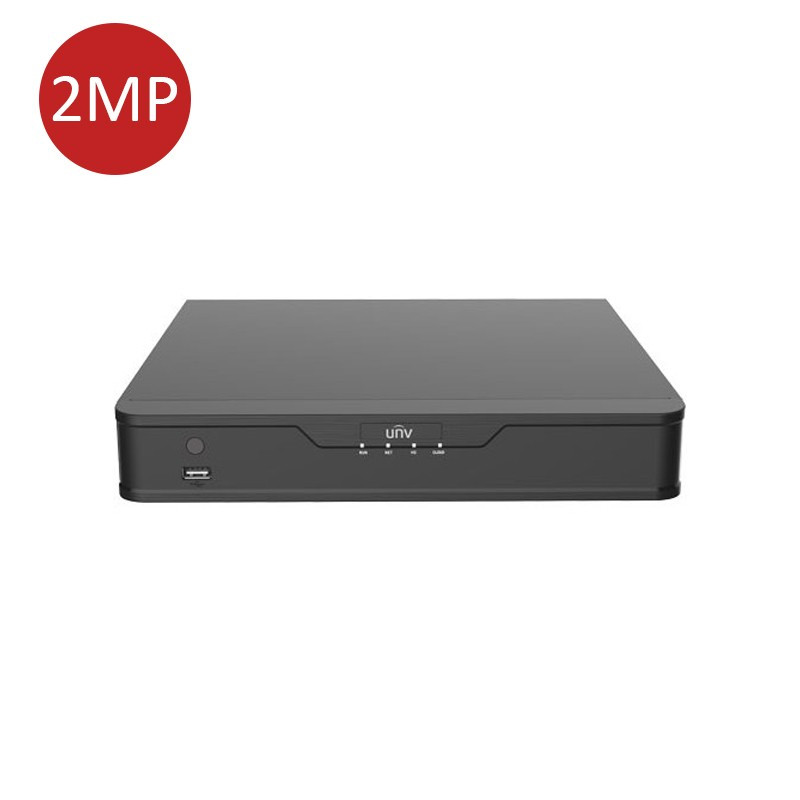

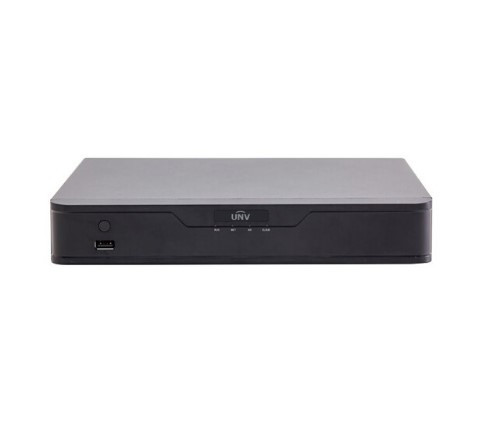

Model | NVR301-08B |
IP | 8-ch |
USB | Rear panel: 2 x USB2.0 |
Capacity | up to 10TB for each disk |
Protocols | P2P, UPnP, NTP, DHCP, PPPOE |
VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Alimentation, V/Hz | 52V DC |
Power Consumption | ≤5.55 W (without HDD) |
Dimensions (W×D×H) | 260mm × 240mm × 44mm |
Weight (without HDD) | ≤2.48kg(5.34lb) |
Warranty | 1 Year |
-Support Ultra 265/H.265/H.264 video formats.
-8-channel input.
-Plug & Play with 8 independent PoE network interfaces.
-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile.
-Support 1-ch HDMI, 1-ch VGA.
- HDMI and VGA simultaneous output.
-Up to 2MP resolution recording.
-1 SATA HDD up to 10 TB.
- Support cloud upgrade.
