Brand | Uniview |
Type | DVR |

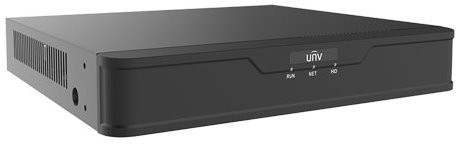

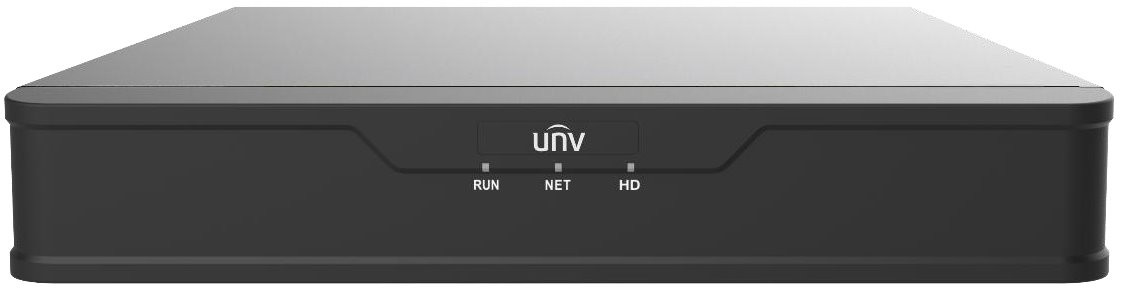

Model | NVR301-16X |
Video/Audio Input | |
Two-way Audio Input | 1-ch, RCA |
IP Video Input | 16-ch |
Network | |
Incoming Bandwidth | 64Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI Output | 3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Frame Rate | |
Audio Output | 1-ch, RCA |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Live View/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |

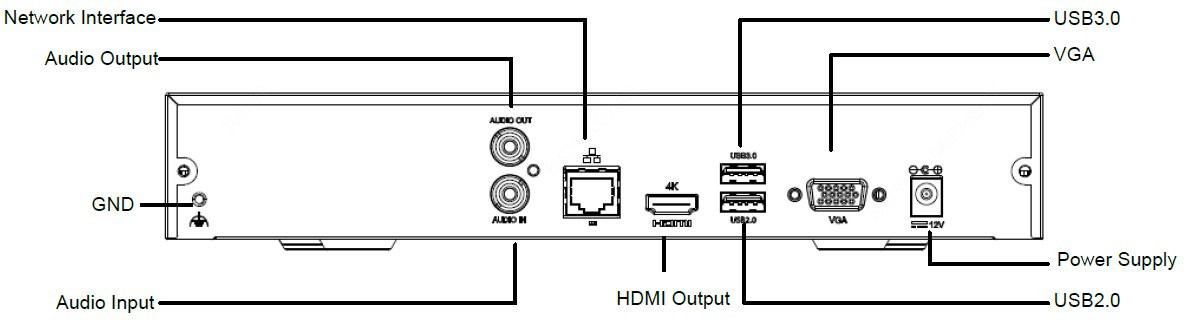

External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
General | |
Power Supply | 12V DC |
Power Consumption | ≤ 8 W (without HDD) |
Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “) |
Weight (without HDD) | 1.3kg (2.87 lb) |
Warranty | 1 Year |
-Support Ultra 265/H.265/H.264 video formats.
-4/8/16-channel input.
-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile.
-Support 1-ch HDMI, 1-ch VGA.
-HDMI and VGA simultaneous output.
- Up to 4K resolution recording.
-1 SATA HDD up to 6 TB.
- Support cloud upgrade.
