Brand | Hikvision |
Product Type | DVR |
Recording | |
Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame Rate | Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps, 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
Sub-stream | WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Bitrate | 32 Kbps to 10 Mbps |
Dual-Stream | Support |
Stream Type | Video, Video & Audio |
Audio Compression | G.711u |
Audio Bitrate | 64 Kbps |
Video And Audio | |
IP Video Input | 16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
Incoming Bandwidth | Enhanced IP mode on Up to 64 Mbps |
HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
CVBS Input | PAL/NTSC |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω) |
Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous Playback | 16-ch |
Network | |
Remote Connection | 128 |
Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Total Bandwidth | 128 Mbps |
Network Interface | 1, RJ45 10M/ 100M/1000M self-adaptive Ethernet interface |
Auxiliary Interface | |
SATA | 2 SATA interface |
Capacity | Up to 10 TB capacity for each disk |
Alarm In/Out | 16/4 |
USB Interface | Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0, |
Serial Interface | RS-485 (half-duplex) |
General | |
Power Supply | 12 VDC |
Consumption (Without HDD) | ≤ 25 W |
Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
Weights (Without HDD) | ≤ 2 kg (4.4 lb) |

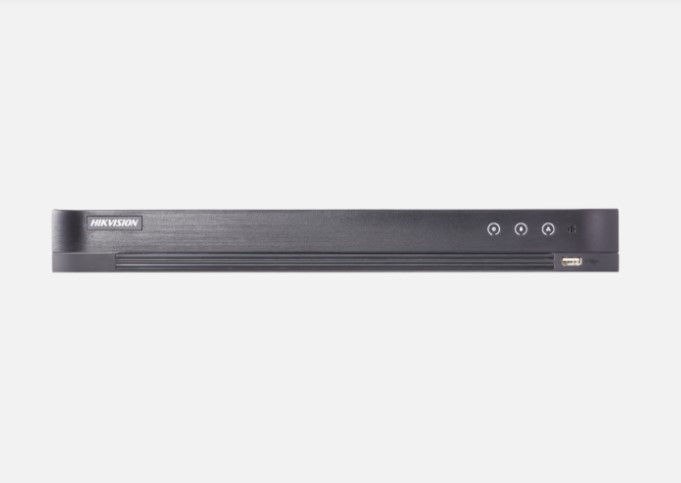

- 16 channels and 1 HDD mini size DVR.
- Efficient H.265 pro+ compression technology.
-Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Up to 32 network cameras can be connected.
