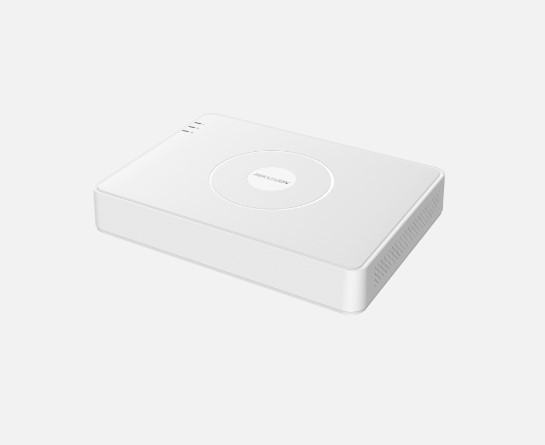

Brand | Hikvision |
Product Type | DVR |
Perimeter Protection | |
Line Crossing Detection/Intrusion Detection | 2-ch |
Enhanced VCA mode on | 8-ch |
Recording | |
Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution | |
When 8 MP Lite mode is not enabled | 8 MP/5 MP/3K/4 MP/3MP/1080p/ 720p/WD1/4CIF/VGA/CIF |
When 8 MP Lite mode is enabled | 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF |
Main stream | |
When 8 MP Lite mode is not enabled | 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1. |
When 8 MP Lite mode is enabled | 8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps 8 MP Lite is only available for DS-7104HUHI-K1. |
Sub-stream | WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Bitrate | 32 Kbps to 10 Mbps |
Dual-Stream | Support |
Stream Type | Video, Video & Audio |
Audio Compression | G.711u |
Audio Bitrate | 64 Kbps |
Video And Audio | |
IP Video Input | 4-ch (up to 12-ch) |
Enhanced IP mode on | 8-ch (up to 16-ch), each up to 4 Mbps |
Up to 8 MP resolution | Support H.265+/H.265/H.264+/H.264 IP cameras |
Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
Incoming Bandwidth | Enhanced IP mode on Up to 64 Mbps |
HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
CVBS Input | PAL/NTSC |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous Playback | 8-ch |
Network | |
Remote Connection | 64 |
Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Total Bandwidth | 128 Mbps |
Network Interface | 1, RJ45 100M/1000M self-adaptive Ethernet interface |
Auxiliary Interface | |
SATA | 1 SATA interface |
Capacity | Up to 6 TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | 2 × USB 2.0 |
General | |
Power Supply | 12 VDC, 1.8 A |
Consumption | ≤ 15 W |
Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
- 8 channels and 1 HDD mini size DVR.
- Efficient H.265 pro+ compression technology.
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps.
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Up to 16 network cameras can be connected.
