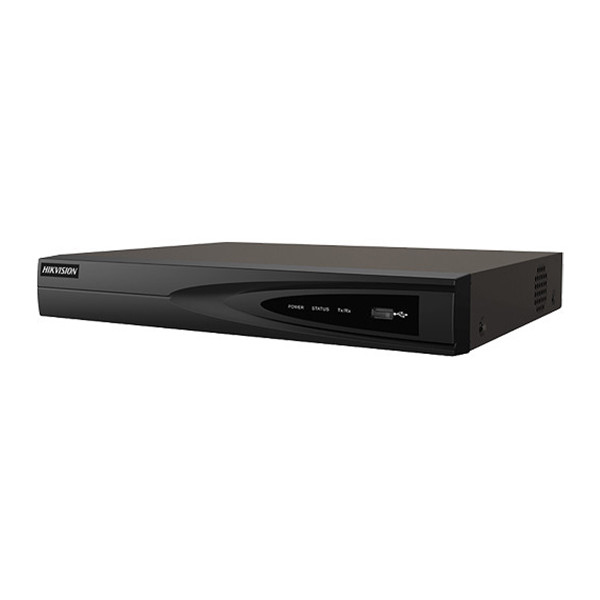

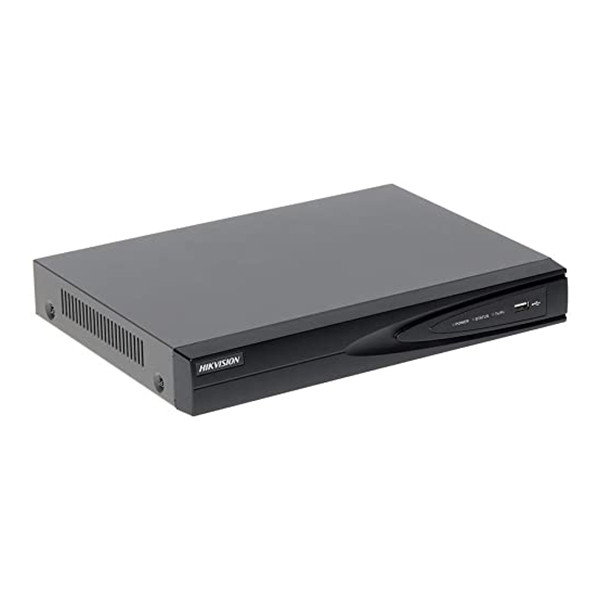

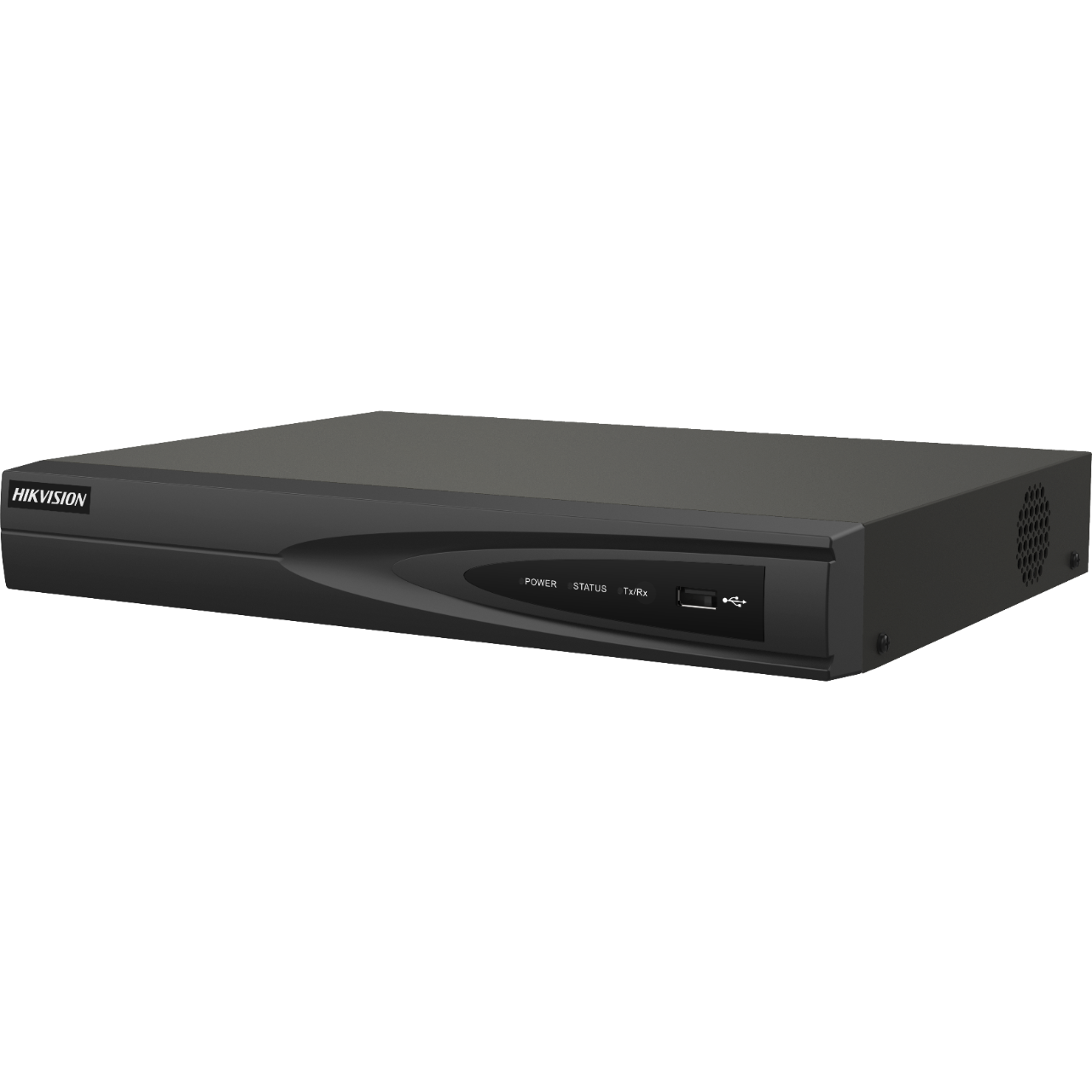

Brand | Hikvision |
Model | DS-7616NI-Q1 |
Video/Audio input | |
IP video input | 16-ch Up to 8 MP resolution |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Network | |
Incoming bandwidth | 160 Mbps |
Outgoing bandwidth | 80 Mbps |
Video/Audio output | |
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous playback | 16-ch |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p |
Network management | |
Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Hard disk | |
SATA | 1 SATA interface |
Capacity | Up to 6TB capacity for each disk |
External interface | |
Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
USB interface | 2 × USB 2.0 |
Alarm in/out | 4/1 (optional) |
General | |
Power supply | 12 VDC |
Power | ≤ 18W |
Consumption (without hard disk ) | ≤ 10 W |
Working temperature | -10 to +55º C (+14 to +131º F) |
Working humidity | 10 to 90 % |
Chassis | 1U chassis |
Dimensions (W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight(without hard disk)disk) | ≤ 1 kg (2.2 lb) |
- H.265+/H.265/H.264/H.264+ video formats.
- Connectable to the third-party network cameras.
- Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1).
- HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1).
- HDMI Video output at up to 4K (3840 × 2160) resolution.
- 1 SATA interface connectable for recording and backup.
- H.265+ compression effectively reduces the storage space and costs by up to 75%.
