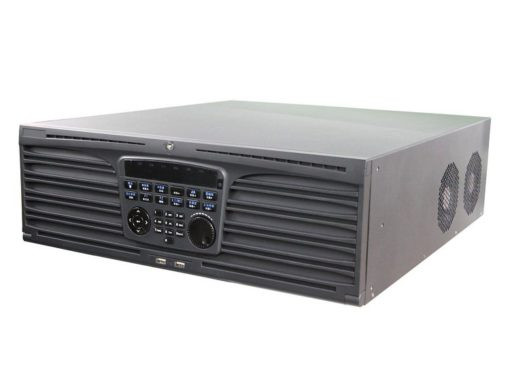

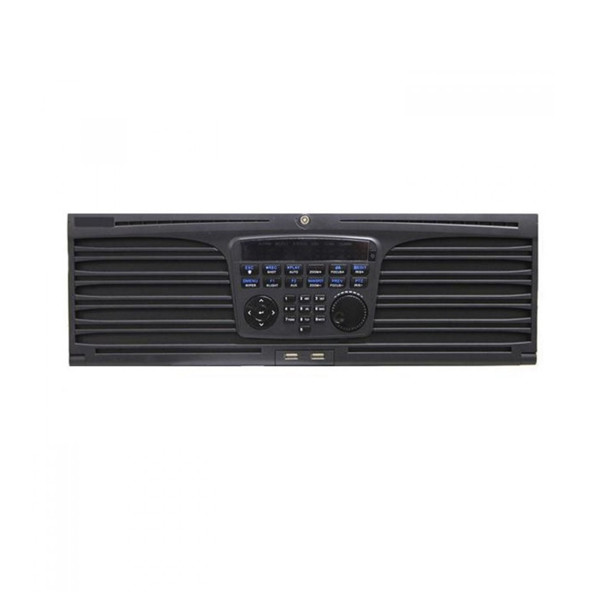

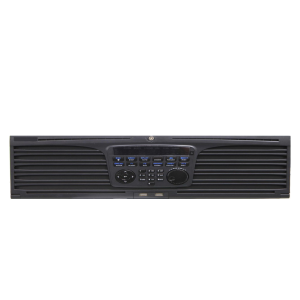

Hikvision Embedded 4K NVR ( DS-9664NI-I16)
Product Serial : 1482
Inhouse product
-
Kieslect K11 Smart Watch
৳3,900.00 -
Meril Petroleum Jelly
৳25.00 -
Walton Primo GH10i
৳8,290.00
PRODUCT DETAILS
| Brand | Hikvision |
| Model | DS-9664NI-I16 |
| Network | |
| Remote connection | 128 |
| Incoming bandwidth | 320Mbps or 200Mbps(when RAID is enabled) |
| Outgoing bandwidth | 256Mpbs or 200Mbps(when RAID is enabled) |
| Video/Audio Output | |
HDMI/VGA output | 2-ch, resolution: HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA1 | 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI2/VGA2 | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 2-ch, RCA (2.0Vp-p, 1KΩ) |
| Synchronous Playback | 16-ch |
| Decoding | |
| Capability | 4-ch@4K, 16-ch@1080p |
Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p /UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| Interface Type | 1 eSATA interface |
| SATA | 16 SATA interfaces for 16 HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| Disk array | |
| Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Number of array | 5 |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface | RS-232, RS-485, Keyboard |
USB Interface | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption(without hard disk and POE) | ≤ 45 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 3U chassis |
| Dimensions | 445 × 496 × 146 mm (17.5 × 19.5 × 5.7") |
| Weight(without HDD) | ≤ 12.5 Kg (27.6 lb) |
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 64-ch |
| Warranty | 1year |
- Third-party network cameras supported.
- Up to 12 Megapixels resolution recording.
- Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution.
- Up to 64 IP cameras can be connected with 320M incoming bandwidth.
- Up to 16 SATA interfaces.
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable.
- Support various VCA detection alarm and VCA search.
- Support H.265/H.264/MPEG4 video formats.
