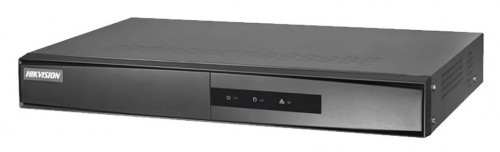

Hikvision 4-CH Mini 1U NVR ( DS-7104NI-Q1M)

Product Serial : 1483
(0 Reviews)

Sold by:
Inhouse product

Price:
/PC
Discount Price:
/PC

Quantity:

Total Price:
Share:
PRODUCT DETAILS
BrandHikvision
ModelDS-7104NI-Q1M
Video And Audio

IP Video Input
4-ch Up to 4 MP resolution
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Decoding

Decoding Format
H.265+/H.265/ H.264+/H.264
Recording Resolution
4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback
4-ch
Decoding Capability
4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
Stream Type
Video, Video & Audio
Network

Remote Connection
16
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface
1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface

SATA
1 SATA interface
Capacity
Up to 6TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Rear panel: 2 × USB 2.0
General

Power Supply
12 VDC, 1.5 A
Consumption
≤ 10 W
Working Temperature
-10 to +55º C (+14 to +131º F)
Working Humidity
10% to 90%


Dimension (W × D × H)

265 × 225 × 48 mm (10.4" × 8.9" × 1.9")

≤ 1 kg (2.2 lb)

Certification

FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN50130-4, EN 61000-3-2,EN 61000-3-3
Warranty1year
Features

- H.265+/H.265/H.264+/H.264 video compression.

- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth.

- Up to 4-ch network camera inputs.

- Up to 4-ch 1080p decoding capability.

- HDMI and VGA simultaneous output.
