Brand | Hikvision |
Product Type | DVR |
Recording | |
Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution | |
When 1080p Lite mode not enabled | 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF |
When 1080p Lite mode enabled | 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
Frame Rate | |
When 1080p Lite mode not enabled | For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
When 1080p Lite mode enabled | For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
Sub-stream | WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Video Bitrate | 32 Kbps to 6 Mbps |
Dual-Stream | Support |
Stream Type | Video, Video & Audio |
Audio Compression | G.711u |
Audio Bitrate | 64 Kbps |
Video And Audio | |
IP Video Input | 16-ch (up to 48-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
Analog Video Input | 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
Incoming Bandwidth | Enhanced IP mode on Up to 64 Mbps |
HDTVI Input | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 The 3 MP signal input is only available for channel 1/2/3/4 |
AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
CVBS Input | PAL/NTSC |
HDMI 1 Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDMI 2 Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) |
Synchronous Playback | 16-ch |
Network | |
Remote Connection | 128 |
Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Network Interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet |
Auxiliary Interface | |
SATA | 4 SATA interface |
ESATA | Support |
Capacity | Up to 10 TB capacity for each disk |
Alarm In/Out | 16/4 |
USB Interface | Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0, |
Serial Interface | RS-485 (half-duplex) |
General | |
Power Supply | 100 to 240 VAC, 50 to 60 Hz |
Consumption (Without HDD) | ≤ 45 W |
Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
Weights (Without HDD) | ≤ 7 kg (15.4 lb. |

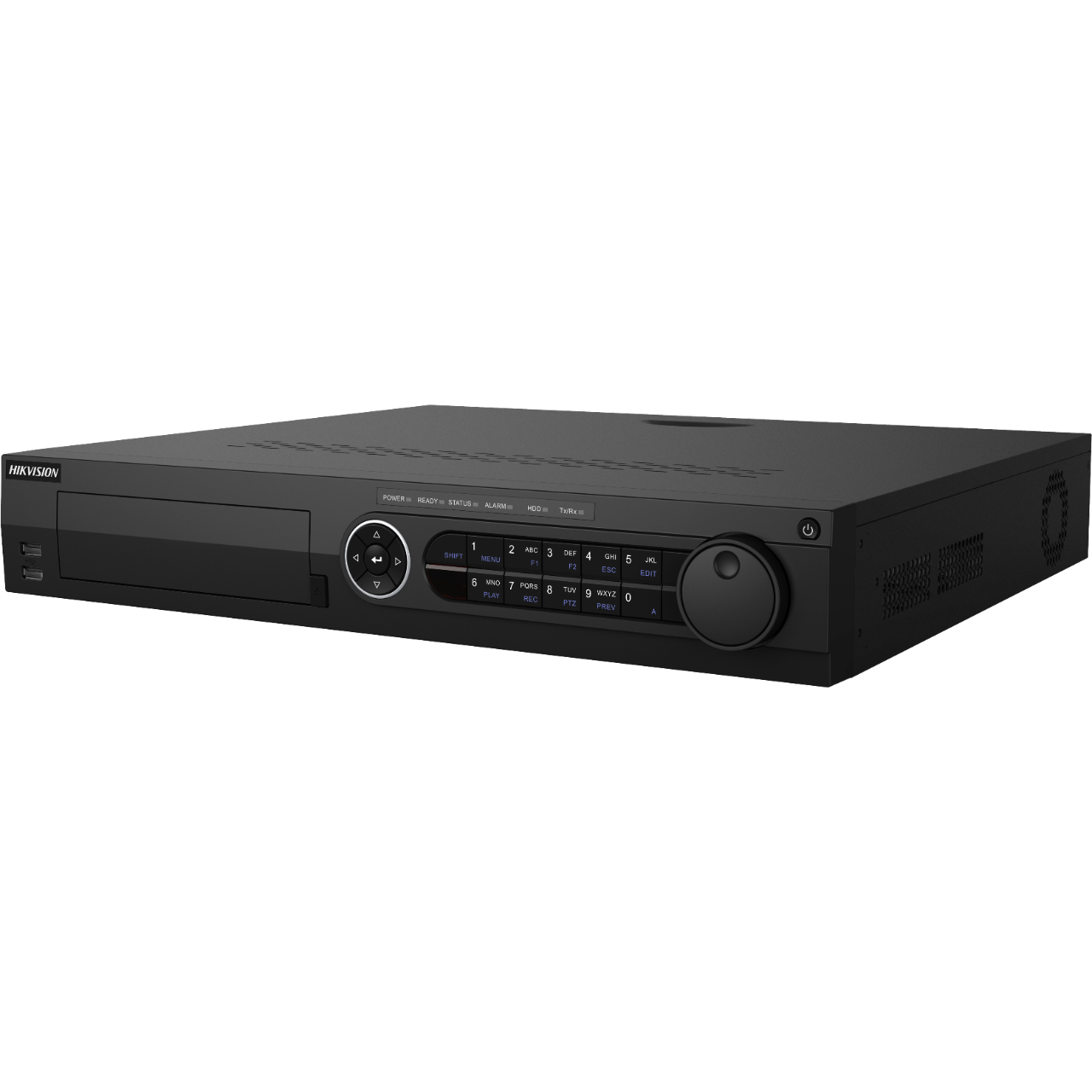

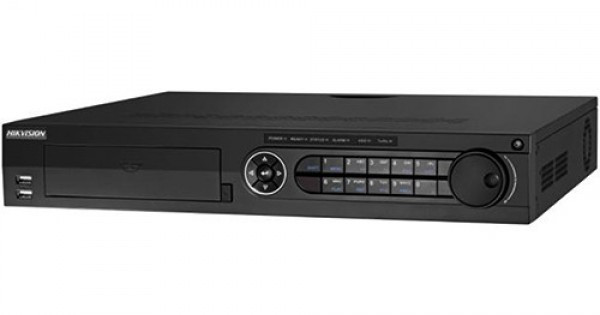

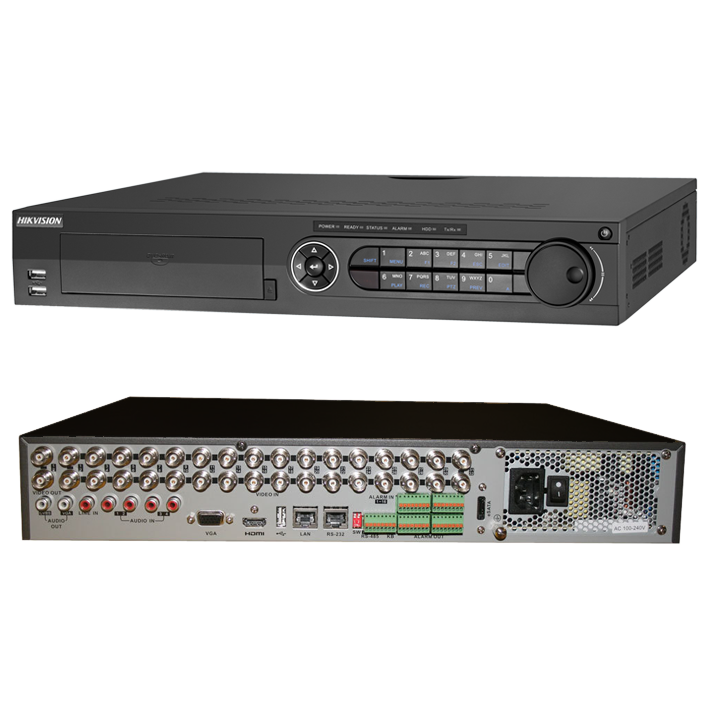

- 32 channels and 4 HDDs 1.5U DVR.
- Efficient H.265 pro+ compression technology.
-Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Up to 48 network cameras can be connected
Supports POS triggered recording and POS information overlay.
