Brand | Walton |

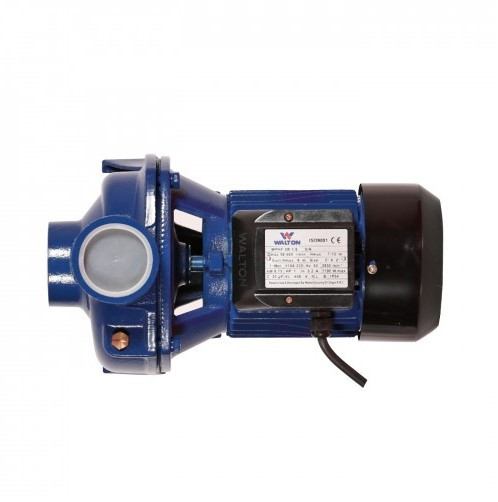

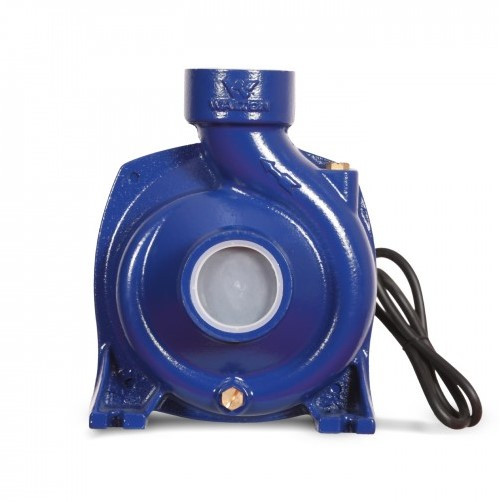

Title | Water pump |
Rated power | 1.0hp (0.75 KW) |
Operating Voltage | 180 – 240V(ac) |
Frequency | 50Hz |
Capacitor | 20 uF, 450VAC |
Q (max) | 50-400 liters/min |
H (max) | 13-7 meters |
Max temp of liquid | 40 degree C |
Max suction | 8 meter |
Suction pipe * Delivery pipe (diameter) | 2.0 inch * 2.0 inch |
Product dimension (L*W*H) | (34*19.5*24*5)cm |
Carton dimension(L*W*H) | (36.5*24*26.4)cm |
Net weight | 14.3Kg |
Gross weight | 15.2Kg |
Insulation class | B |
Ingress Protection class | IP54 |
Continuous service | S1 |
Power cable (3*1.0mm2) Length | 86 cm |
Power cable Plug type | E |
- AISI201 fabricated shaft.
- Endurable mechanical seal.
-100% copper winding.
- High-efficiency Agricultural pump.
- Rewindable & thermal protected motor.
Warranty Information
- Main Parts: 2 years
- Spare Parts: 1 year
- After Sales Service: 2 years
Note
This warranty does not cover any damage due to accident, electricity fault, natural causes, or negligence.
And Authority keeps the power to change, expand, correct, stop, or cancel the warranty period without any prior notice.
