PRODUCT DETAILS
Brand | HP
|
Model
| HP ProLiant DL20 Gen 10
|
Processor
|
|
Processor Brand
| Intel
|
Processor Model
| Intel Xeon E-2224 |
Number Of Processor
| 1
|
Processor Clock Speed
| 3.40 GHz - 4.60 GHz
|
Processor Base Frequency | 3.40 GHz
|
Processor Max Turbo Frequency
| 4.60 GHz
|
Total Cores | 4
|
Total Threads | 4
|
Processor Cache
| 8MB
|
Bus Speed
| 8 GT/s
|
TDP
| 71W
|
Chipset
| Intel C242
|
Memory
|
|
RAM
| 16GB
|
Installed RAM Details | 1 x 16GB
|
RAM Type
| DDR4
|
RAM Bus (MHz)
| 2666
|
RAM Slot
| 4
|
Max. RAM Support
| 64GB
|
DRAM Type
| ECC UDIMM
|
Storage
|
|
Hard Disk Drive (HDD)
| 2 x 1TB
|
Installed HDD Type
| SATA
|
Bays
| 2
|
Graphics
|
|
Integrated Graphics
| Yes
|
Graphics
| Integrated Matrox G200 Video Graphics
|
Graphics Memory Accessibility
| Integrated
|
Ports & Slots
|
|
Optical Drive
| Sata DVD RW
|
I/O Ports & Connectivity
| Video: 1 Rear - VGA port (standard on all
chassis types), Network Ports: 2x 1GbE embedded NIC (standard on all
chassis types), Front: 1xUSB 3.0, 1xUSB iLO Service Port, Rear: 2xUSB
3.0, Internal: 1x USB 3.0 |
USB Port | Front: 1xUSB 3.0 1xUSB iLO Service Port, Rear: 2xUSB 3.0, Internal: 1x USB 3.0 |
Expansion Slots
| 2x PCIe 3.0 Slots
|
Network & Connectivity
|
|
LAN
| 2 x Gigabit |
Networking
| Dual Port HPE 1GB Ethernet Adapter
|
Software
|
|
Operating System
| No OS
|
Physical Description
|
|
Form Factor
| Rack
|
Density (1u =1.75 Inch)
| 1U
|
Dimensions
| 43.18 x 434 x 382mm |
Weight
| 6 kg
|
RAID
|
|
Raid Type
| Hardware & Software
|
Raid Model
| HPE Dynamic Smart Array S100i Controller
|
Supporting RAID Level
| 0,1,5
|
Power Supply
|
|
Number of PSU
| 1
|
PSU Capacity
| 290W
|
PSU Type
| Non-Hot Plug & Non-redundant
|
Warranty |
|
Warranty | 3 Year |
Additional Info |
|
Monitor
| No Monitor |
Keyboard
| No
|
Mouse
| No
|
Others
| System Fans (cooling): 3 non hot plug,
non-redundant, /4-core/8MB Processor, HPE Dual Rank x8 DDR4- Unbuffered
Memory, HPE 6G SATA 7.2K LFF (3.5in) HDD (2x 3.5in HDD Bay, Max 8TB
(2x4TB)), 290W FIO Non-Hot Plug & Non-redundant Power Supply |
Country Of Origin | USA |

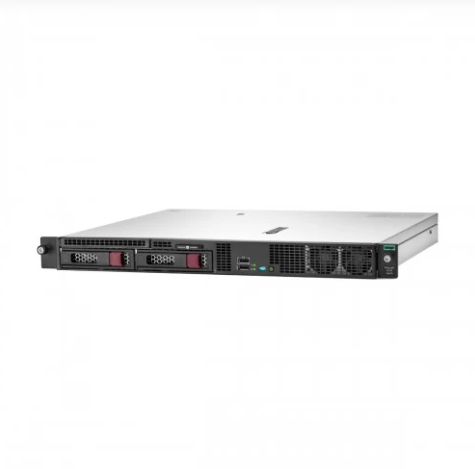

HP Gen 10 1U Intel Xeon E-2224 Rack Server (ProLiant DL20)
Brand - HP, Model - HP ProLiant DL20 Gen 10, Processor Model - Intel
Xeon E-2224, Number of Processor - 1, Clock Speed - 3.40 GHz - 4.60 GHz,
Processor Base Frequency - 3.40 GHz, Processor Max Turbo Frequency -
4.60 GHz, Total Cores - 4, Total Threads - 4, Processor Cache - 8MB, Bus
Speed - 8 GT/s, TDP - 71 W, Chipset - Intel C242, RAM - 16GB, Installed
RAM Details - 1 x 16GB, RAM Type - DDR4, RAM Bus (MHz) - 2666MHz, Total
RAM Slot - 4, Max. RAM Support - 64GB, DRAM Type - ECC UDIMM, HDD (TB)
with Qty - 2 x 1TB, Installed HDD Type - SATA, Bays - 2, Integrated
Graphics - Yes, Graphics Chipset - Integrated Matrox G200 Video
Graphics, Graphics Memory Accessibility - Integrated, Optical Device -
SATA DVD-RW, I/O Ports - Video: 1 Rear - VGA port (standard on all
chassis types), Network Ports: 2x 1GbE embedded NIC (standard on all
chassis types), Front: 1xUSB 3.0, 1xUSB iLO Service Port, Rear: 2xUSB
3.0, Internal: 1x USB 3.0, USB Ports - Front: 1xUSB 3.0 1xUSB iLO
Service Port, Rear: 2xUSB 3.0, Internal: 1x USB 3.0, Expansion Slots -
2x PCIe 3.0 slots, LAN Card - 2 x Gigabit, Networking - Dual Port HPE
1Gb Ethernet Adapter, Operating System - No OS, Form Factor - Rack,
Density (1u =1.75 Inch) - 1U, Dimensions (HxWxD)mm - 43.18 x 434 x
382mm, Weight - 6 kg, Raid Type - Hardware & Software, Raid Model -
HPE Dynamic Smart Array S100i Controller, Supporting RAID Level - 0,1,5,
Number of PSU - 1, PSU Capacity - 290W, PSU Type - Non-Hot Plug &
Non-redundant, Warranty - 3 Year, Monitor - No, Keyboard - No, Mouse -
No, Others - System Fans (cooling): 3 non hot plug, non-redundant,
/4-core/8MB Processor, HPE Dual Rank x8 DDR4- Unbuffered Memory, HPE 6G
SATA 7.2K LFF (3.5in) HDD (2x 3.5in HDD Bay, Max 8TB (2x4TB)), 290W FIO
Non-Hot Plug & Non-redundant Power Supply, Country of Origin - USA.
