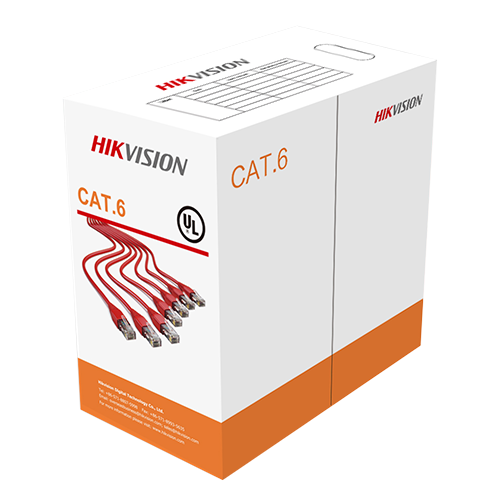

Brand | Hikvision |
Type | Network Cable |
Model | DS-1LN6U-WCCA |
General | |
Packing | Carton |
Carton Dimension | 41x41x24cm |
Packing Length | (305±1.5)m |
Rip-Cord | Yes |
Drain Wire | No |
Sheath Physical Properties | |
Before Aging Tensile Strength (Mpa) | ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging , Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D. No visible cracks, |
Electrical Characteristics (20℃) | 1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25, 1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12, DC Conductor Resistance Unbalance(%) max 2, |
Conductor | |
Material | CCA(Copper content:27%) |
Nom.O.D.(Mm) | 0.585±0.01 |
Insulation | |
Material | Solid HDPE |
Diameter | 1.05±0.05mm |
Sheath | |
Thickness | 0.50±0.05 mm |
External O.D. | 6.0±0.30 mm |
Surface | Clean, Frap, Satiation |
Material | FR-PVC(complies RoHS) |
Feature:
-305 m cost-effective CAT6 CCA network cable.
-Full diameter and full length.
-Quality verified by Fluke test.
-Guaranteed long PoE transmission distance.
