Brand | Hikvision |

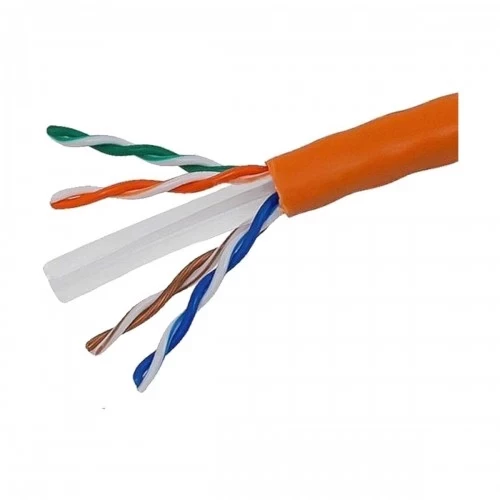

Type | Cat 6 Cable |
Model | DS-1LN6U-SC0 |
General | |
Rip-Cord | Yes |
Category | Cat.6 |
Reference Standard | ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 |
Fire Resistance | No |
Separator | Yes |
Conductor | |
Material | Solid-Bare Copper (99.95%) |
Diameter | 0.55 ± 0.005 mm, 23 AWG |
Insulation Material | HDPE |
Diameter | 0.98 ± 0.05 mm |
Sheath Physical Properties | |
Before Aging | Tensile strength ≥ 13.5 Mpa, Elongation ≥ 150% |
Aging Period | 100°C × 24h × 10d |
After Aging | Tensile strength ≥ 12.5 Mpa, Elongation ≥ 125% |
Cold Bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
Electrical Characteristics(20℃) | |
1.0-250.0 MHz Impedance | 100 ± 15 Ω @ ≤ 100 MHz, 100 ± 25 Ω @100-250 MHz |
1.0-250.0 Mhz Delay Skew | ≤ 45 ns/100 m |
DC Resistance | ≤ 9.38 Ω/100 m |
DC Conductor Resistance Unbalance | ≤ 5.0% |
Package Dimension | 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45") 12.3 ± 0.5kg |
Cable Length | (305 ± 1.5) m |
Ambient Temperature | -20°C to 75°C (-4°F to 167°F) |
Operating Voltage | 60 V |
Sheath | |
Thickness | 0.50 ± 0.10 mm |
Material | PVC |
Diameter | 6.00 ± 0.30 mm |
-Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
-Compliant with RoHS 2.0.
-Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
-Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
-Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
-Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
