Brand | Dahua |
Type | UTP Cable CAT6; |
Model | DH-PFM920I-6UN-C |
Structure | |
Conductor Material | OFC(oxygen free copper) |
Structure | 4P*0.53± 0.01mm |
Insulation | |
Material | HDPE |
Min. average thickness | 0.21mm |
Diameter | 0.95mm±0.05mm |
Rip cord | Yes |
Jacket | |
Material | PVC, meet the requirement of CPR E class, PVC, meet the requirement of UL CM class |
Min. average thickness | 0.40mm |
Diameter | 6.0± 0.50mm |
General | |
Length | 305m(1000.66ft) |
N.W. | 11.25kg(24.8lb) |
Packaging dimension | 412mmx412mmx215mm(16.22”x16.22”x8.46”) |
Weight (with packaging) | 12.75kg(28.11lb) |
Mechanical properties | |
Tensile strength | ≥16MPa |
Elongation at break | ≥300% |
Peeling property | No damage to insulation or conductor |
Jacket | |
Tensile strength | Before aging: ≥13.5MPa, After aging: ≥12.5MPa,Before aging: ≥13.5MPa Retention rate of tensile strength, after aging: ≥85% |
Elongation at break | Before aging: ≥150%, After aging: ≥125%, Before aging: ≥150%, Retention rate of elongation at, break after aging: ≥50% |
Aging condition | 100℃*24h*7d |
Peeling property | No damage to insulation, cold bending (-20C *4h), the outer, diameter of the cable is 8 times, without cracking. No damage to insulation, cold bending (-15C *4h), the outer, diameter of the cable is 8 times, without cracking. |
Electrical performance | 20℃ |
Characteristic impedance | (1-250MHz) 100±15Ω |
DC resistance | ≤9.38Ω/100m |
Max. unbalance rate of line pairs’ direct current | ≤5% |
Time delay | ≤45ns/100m |

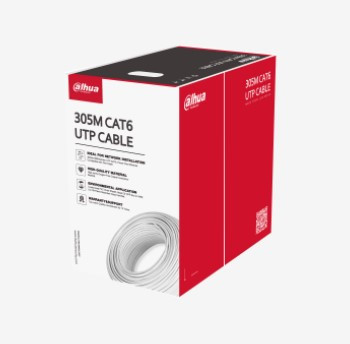

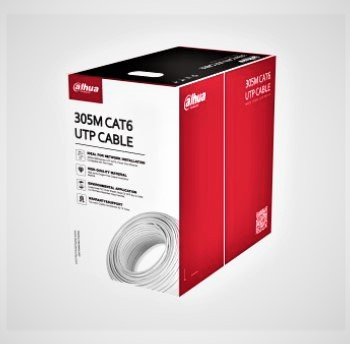

Dimensions (mm/inch) | 305m UTP CAT6 cable |
Warranty | 1 Year |
